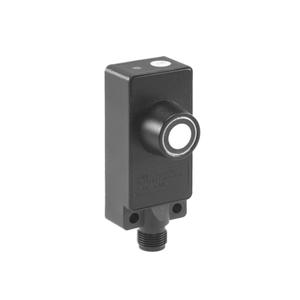

The Baumer UZDK 30N6112/S14 10131958 is a 2-point proximity switch with a scanning range of 60 to 400 mm and a hysteresis of approximately 4%. It features high repeat accuracy of 0.5 mm and minimal temperature drift under 2%. The device operates with a quick response and release time of less than 30 ms each, and utilizes a sonic frequency of 400 kHz. It includes a Teach-in adjustment and a target indication flashing for easier alignment, along with a green/yellow LED output indicator. This model supports a voltage supply range of 12 to 30 VDC, consumes a maximum of 40 mA with no load, and offers an output current of 200 mA. It is designed with a robust rectangular housing made from polyester and die-cast zinc, measuring 30 mm in width, 65 mm in height, and 31 mm in depth. The connection is facilitated via an M12 connector. Suitable for operating temperatures from -10 to +60 °C, it is equipped with short circuit and reverse polarity protection, and is rated IP 67 for high protection against dust and water ingress.
- Special type:
- 2 point proximity switch
- Scanning range Sd:
- 60 400 mm
- Scanning range far limit Sde:
- 60 400 mm
- Hysteresis typ.:
- 4 % Sde
- Repeat accuracy:
- 0.5 mm
- Temperature drift:
- < 2 % Sde
- Response time ton:
- < 30 ms
- Release time toff:
- < 30 ms
- Sonic frequency:
- 400 kHz
- Adjustment:
- Teach-in
- Alignment aid:
- Target indication flashing
- Output indicator:
- Green / yellow LED
- Voltage supply range +Vs:
- 12 30 VDC
- Current consumption max. (no load):
- 40 mA
- Output circuit:
- NPN make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <2 VDC
- Residual ripple:
- < 10 % Vs
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Rectangular
- Housing material:
- Polyester / die-cast zinc
- Width / diameter:
- 30 mm
- Height / length:
- 65 mm
- Depth:
- 31 mm
- Connection types:
- Connector M12
- Operating temperature:
- -10 +60 °C
- Protection class:
- IP 67
