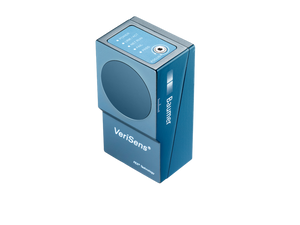

The Baumer VS XF800C03W12IP is a high-performance vision sensor featuring a 1/3? CMOS color sensor with a resolution of 752 × 480 px. It includes integrated white LED illumination, classified as LED class risk group 1, ensuring low-risk operation according to EN 62471:2008. The sensor can perform up to 50 high-resolution inspections per second, with an object distance ranging from 50 mm to 450 mm. It supports up to 255 jobs with 32 features per job, utilizing Baumer FEX® 4.0 signal processing. The device is equipped with a 12 mm lens and has a defect image memory capacity for 32 images. Power requirements are 24 V ±25%, with a maximum power consumption of 18 W including I/O operations. It offers multiple connectivity options including Ethernet, PROFINET, EtherNet/IP, and TCP/UDP protocols. The sensor's digital I/O capabilities include five inputs and five outputs for various control functions such as trigger, job selection, and alarm signaling. The vision sensor is housed in a robust aluminum casing with a PMMA cover glass, measuring 53 mm in width, 99.5 mm in height, and 38 mm in depth, and weighs less than 250 g. For configuration and monitoring, it features a configurable web interface with a MultiViewer function. The Baumer VS XF800C03W12IP is designed for industrial environments requiring precise visual inspections and is suitable for a variety of applications across different sectors.
- Resolution:
- 752 × 480 px
- Sensor type:
- 1/3? CMOS, color
- Illumination:
- integrated, LED white
- LED class:
- risk group 1 (low risk, EN 62471:2008)
- High-resolution mode:
- max. 50 inspections per second
- Object distance min.:
- 50 mm
- Object distance max.:
- 450 mm
- Number of jobs (products):
- ? 255
- Features per job:
- 32
- Signal processing:
- Baumer FEX® 4.0
- Defect image memory:
- 32
- Lens:
- 12 mm
- Nominal voltage power supply:
- 24 V ±25 %
- Nominal voltage power supply (add-on):
- Class 2 according to NEC / protection class III
- Nominal voltage power supply (info):
- The device is intended for supply from an isolated limited power source according to UL61010-1, 3rd ed cl. 9.4 or a limited energy source according to UL60950-1 or Class 2 according to NEC.
- Power consumption:
- Max. 18 W (with I/O)
- Inputs:
- 8 30 V (polarity protected)
- Digital inputs:
- 5 inputs trigger job selection external teach-in encoders (CH-A, CH-B) 500 kHz
- Outputs:
- PNP Ipeak = 100 mA and Ieff = 50 mA (short-circuit proof)
- Digital outputs:
- 5 outputs Pass / Fail Flash Sync Alarm Camera Ready Output Enable
- Initial setup:
- Ethernet (10BASE-T / 100BASE-TX)
- Process interface:
- PROFINET (CC-A) EtherNet/IP TCP/UDP (Ethernet)
- Visualization:
- configurable web interface with MultiViewer function
- Width:
- 53 mm
- Height:
- 99.5 mm
- Depth:
- 38 mm
- Weight:
- ? 250 g
- Material:
- housing: aluminum cover glass: PMMA
