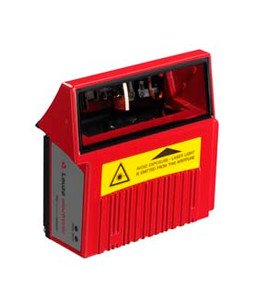

Leuze BCL 300i SN 100 Stationary bar code reader
Leuze
$2,973.33
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze BCL 300i SN 100 Stationary bar code reader
BCL 300i SN 100 Stationary bar code reader
- Series:
- BCL 300i
- Functions:
- Alignment mode,AutoConfig,AutoControl,AutoReflAct,Code fragment technology,LED indicator,Reference code comparison
- Code types, readable:
- 2/5 Interleaved,Codabar,Code 39,Code 93,Code 128,EAN 8/13,GS1 Databar Expanded,GS1 Databar Limited,GS1 Databar Omnidirectional,UPC
- Scanning rate, typical:
- 1,000 scans/s
- Bar codes per reading gate, max. number:
- 64 Piece(s)
- Reading distance:
- 20 ... 130 mm
- Light source:
- Laser, Red
- Wavelength:
- 655 nm
- Laser class:
- 1, IEC/EN 60825-1:2014
- Modulus size:
- 0.127 ... 0.2 mm
- Reading method:
- Line scanner with deflecting mirror
- Beam deflection:
- By means of rotating polygon mirror wheel + deflecting mirror
- Light beam exit:
- Lateral with deflecting mirror
- Supply voltage UB:
- 18 ... 30 V, DC
- Power consumption, max.:
- 4.5 W
- Number of inputs/outputs selectable:
- 2 Piece(s)
- Type:
- RS 232, RS 422
- Type:
- USB 2.0
- Function:
- Configuration via software
- Number of connections:
- 1 Piece(s)
- Function:
- BUS OUT,Connection to device,Data interface,PWR / SW IN / OUT,Service interface
- Type of connection:
- Plug connector, It is essential to use a connection unit when commissioning the device.
- No. of pins:
- 32 -pin
- Type:
- Male
- Design:
- Cubic
- Dimension (W x H x L):
- 103 mm x 44 mm x 96 mm
- Housing material:
- Metal
- Metal housing:
- Diecast aluminum
- Lens cover material:
- Glass
- Net weight:
- 350 g
- Housing color:
- Red,Silver
- Type of fastening:
- Dovetail grooves,Fastening on back,Via optional mounting device
- Type of display:
- LED
- Number of LEDs:
- 2 Piece(s)
- Type of configuration:
- Via web browser
- Ambient temperature, operation:
- 0 ... 40 °C
- Ambient temperature, storage:
- -20 ... 70 °C
- Relative humidity (non-condensing):
- 0 ... 90 %
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 55022,EN 61000-4-2, -3, -4, -6
- Test procedure for shock in accordance with standard:
- IEC 60068-2-27, test Ea
- Test procedure for continuous shock in accordance with standard:
- IEC 60068-2-29, test Eb
- Test procedure for vibration in accordance with standard:
- IEC 60068-2-6, test Fc
- Customs tariff number:
- 84719000
- ECLASS 5.1.4:
- 27280102
- ECLASS 8.0:
- 27280102
- ECLASS 9.0:
- 27280102
- ECLASS 10.0:
- 27280102
- ECLASS 11.0:
- 27280102
- ECLASS 12.0:
- 27280102
- ECLASS 13.0:
- 27280102
- ECLASS 14.0:
- 27280102
- ECLASS 15.0:
- 27280102
- ETIM 5.0:
- EC002550
- ETIM 6.0:
- EC002550
- ETIM 7.0:
- EC002550
- ETIM 8.0:
- EC002550
- ETIM 9.0:
- EC002550
- ETIM 10.0:
- EC002550
- Datasheet:
- View
- Brochure:
- View
- Declaration of Conformity:
- View
