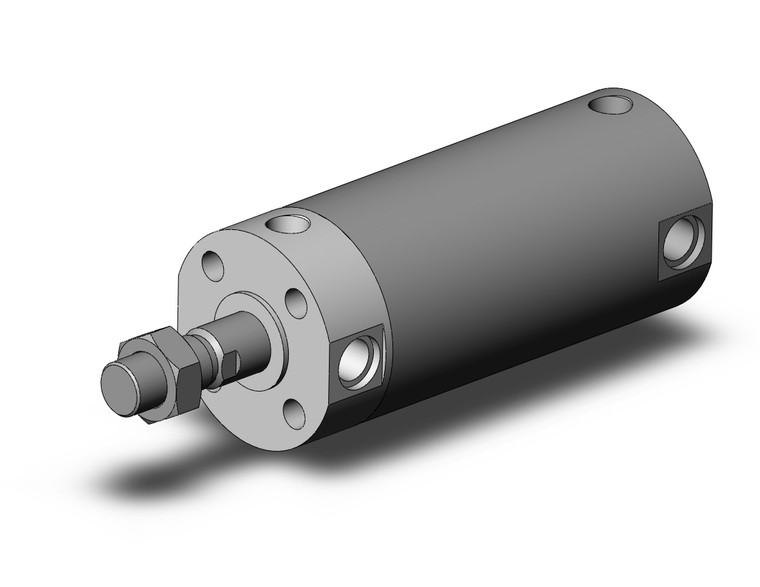

SMC CDG1BN63-75Z CG1 Series Air Cylinder, 63mm Bore, 75mm Stroke
SMC
$122.25
The SMC CDG1BN63-75Z CG1 Cylinder is a robust and versatile solution for pneumatic applications, designed to meet the rigorous demands of engineering and manufacturing environments. This double-acting, single rod air cylinder is part of the esteemed C(D)G1-Z series, renowned for its precision and reliability.
Engineered with an impact extruded aluminum tube, the CDG1BN63-75Z ensures an exceptionally smooth internal finish, facilitating low break-away pressure and seamless stroke action. This feature is critical for applications requiring precise control and efficiency. The cylinder is available in eight bore sizes, including 63mm, making it adaptable to a wide range of industrial needs.
Key technical specifications include:
- Bore Size: 63mm
- Stroke Length: 75mm
- Female piston rod threads as a standard option
- Auto switch capability for enhanced operational flexibility
- Various mounting bracket options to suit diverse installation requirements
- Easy fine adjustment of auto switch position for optimal performance
The absence of a trunnion mounting female thread further simplifies installation and maintenance, while the availability of multiple mounting options ensures compatibility with existing systems. The SMC CDG1BN63-75Z is an ideal choice for professionals seeking a reliable and efficient air cylinder solution.
For detailed technical specifications and installation guidelines, please refer to the [Series Catalog](https://content2.smcetech.com/pdf/CG1_Z.pdf).
- Magnet:
- D (Built-in Magnet)
- Mounting:
- B (Basic)
- Type:
- N (Rubber Bumper)
- Bore:
- 63mm
- Port Thread Type:
- Rc (or M5, Depending on Style, Bore Size, and Thread Combination)
- Stroke:
- 75mm
- Thread:
- Male Rod End
- Suffix for Cylinder:
- w/o Rod Boot
- Pivot Bracket:
- None
- Rod End Bracket:
- None
- Auto Switch:
- No Switch
- Lead Wire or Prewire Connection:
- 0.5m (Or None in the Case of No Switch)
- Number:
- 2 pcs. (Or None in the Case of No Switch)
- X Option:
- None
