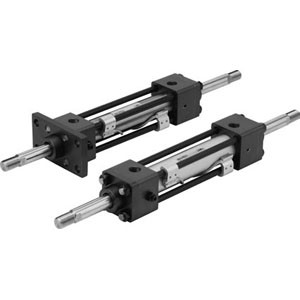

SMC CHD2FWFA100B-175-A533 CH2EW·CH2FW Series JIS Standard Hydraulic Cylinder Double Acting/Double Rod

SMC CHD2FWFA100B-175-A533 CH2EW·CH2FW Series JIS Standard Hydraulic Cylinder Double Acting/Double Rod

SMC
SKU:
CHD2FWFA100B-175-A533
Availability:
Factory stock
$1,200.00
Condition:
New
Current Stock:
Description

CH2EW·CH2FW Series JIS Standard Hydraulic Cylinder Double Acting/Double Rod

  • Uses the cushion seal type cushion mechanism, reduces impact at the;　stroke end, and improves durability;
  • Rod cover with block construction for easy disassembly and assembly;
  • With auto switch (Series CHD2: CHD2E, CHD2EW, CHD2F, CHD2FW,;　CHD2G, CHD2H)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch
    Series Type:
    Tubing Material:Stainless Steel
    Mounting Style:
    Rod Rectangular Flange Style
    Bore Size:
    Bore Size 100 mm
    Rod Size Series:
    B-series Rod Size
    Suffix For Cylinder:
    Without rod end nut,With double-side cushion
    Port and Cushion Valve Positions:
    Port:TopCushion Valve:Right
    Auto Switch:
    Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V
    Made To Order:
    Standard
