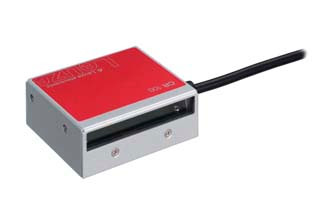

Leuze CR100M2/R2 Stationary bar code reader
Leuze
$897.08
CR100M2/R2 Stationary bar code reader
- Series:
- CR100
- Chip:
- CCD
- Functions:
- Alignment mode,I/O,LED indicator,Multiple read / MultiScan,Output format selectable,Reading gate control
- Code types, readable:
- 2/5 Interleaved,Codabar,Code 39,Code 93,Code 128,EAN/UPC,EAN 128,EAN Addendum
- Scanning rate, typical:
- 700 scans/s
- Bar codes per reading gate, max. number:
- 63 Piece(s)
- Reading distance:
- 20 ... 72 mm
- Light source:
- LED, Red
- Wavelength:
- 660 nm
- Modulus size:
- 0.15 ... 0.5 mm
- Reading method:
- Line scanner
- Scanning rate:
- 700 scans/s
- Beam deflection:
- Via prism
- Light beam exit:
- Front
- Supply voltage UB:
- 4.9 ... 5.4 V, DC
- Current consumption, max.:
- 250 mA
- Number of digital switching inputs:
- 1 Piece(s)
- Number of digital switching outputs:
- 1 Piece(s)
- Switching current, max.:
- 20 mA
- Function:
- Process
- Function:
- Service
- Number of connections:
- 1 Piece(s)
- Function:
- Data interface,Signal IN,Signal OUT,Voltage supply
- Type of connection:
- Cable
- Cable length:
- 2,000 mm
- Number of conductors:
- 6 -wire
- AWG:
- 28
- Design:
- Cubic
- Dimension (W x H x L):
- 55 mm x 20 mm x 47 mm
- Housing material:
- Metal
- Metal housing:
- Sheet metal plate shaped
- Lens cover material:
- Plastic
- Net weight:
- 200 g
- Housing color:
- Red,Silver
- Type of fastening:
- Fastening on back,Side mounting with thread
- Type of display:
- LED
- Number of LEDs:
- 1 Piece(s)
- Ambient temperature, operation:
- 0 ... 45 °C
- Ambient temperature, storage:
- -25 ... 60 °C
- Relative humidity (non-condensing):
- 90 %
- Degree of protection:
- IP 40
- Protection class:
- III
- Approvals:
- cUR us
- Test procedure for EMC in accordance with standard:
- EN 55022,EN 55024,EN 61000-4-2, -3, -4, -6
- Customs tariff number:
- 84719000
- ECLASS 5.1.4:
- 27280102
- ECLASS 8.0:
- 27280102
- ECLASS 9.0:
- 27280102
- ECLASS 10.0:
- 27280102
- ECLASS 11.0:
- 27280102
- ECLASS 12.0:
- 27280102
- ECLASS 13.0:
- 27280102
- ECLASS 14.0:
- 27280102
- ECLASS 15.0:
- 27280102
- ETIM 5.0:
- EC002550
- ETIM 6.0:
- EC002550
- ETIM 7.0:
- EC002550
- ETIM 8.0:
- EC002550
- ETIM 9.0:
- EC002550
- ETIM 10.0:
- EC002550
