Datasensing AE1/AN-4F Sensors
Datasensing
$52.16

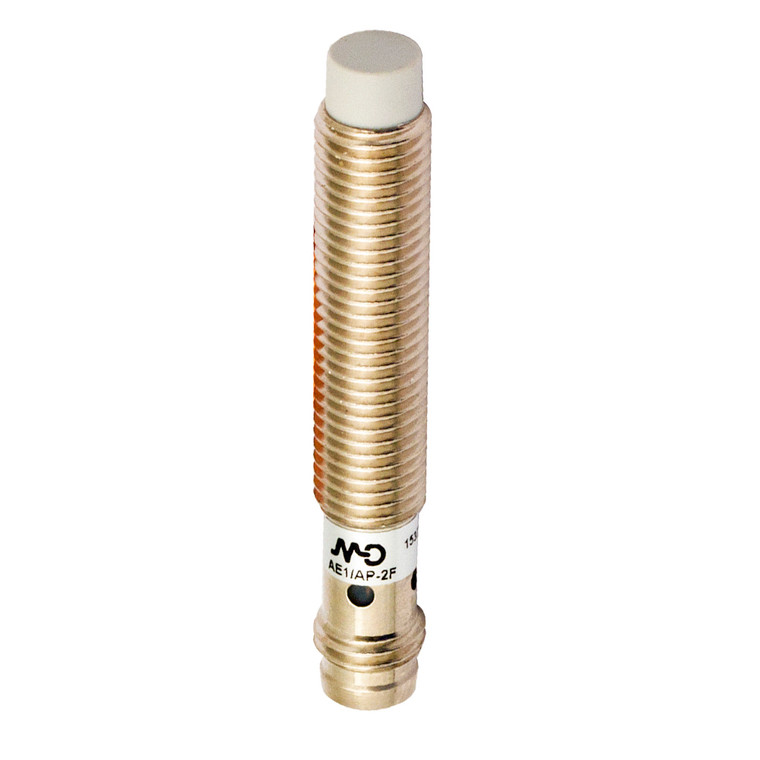

The Datasensing AE1/AN-4F Sensors are designed for precision and reliability in industrial applications. These inductive sensors feature an M8 LD unshielded NO/NPN connection, offering a nominal sensing distance of 4mm and an operating range of 0 to 3.24mm. Constructed with a robust nickel-plated brass housing, they ensure durability and resistance to harsh environments, with an IP67 protection rating. The sensors are equipped with a 360° visible LED status indicator for easy monitoring and are compatible with ATEX models, category 3, upon request.
Engineered for complete protection against electrical damages, these sensors include short-circuit, reverse polarity, and impulsive overvoltage protection. They operate efficiently within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The sensors are designed to handle a maximum ripple content of ? 10% and feature a switching frequency of 5kHz.
The AE1/AN-4F Sensors are suitable for various materials, with correction factors for copper, aluminum, brass, and stainless steel. They maintain high repeat accuracy and minimal thermal drift, ensuring consistent performance. The sensors are easy to install with an M8 plug connection and come with two M8x1 nuts for secure mounting. With a compact design and a weight of just 20g, these sensors are ideal for applications requiring precise proximity detection in challenging conditions.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,24mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,47 / aluminium: 0,52 / brass: 0,58 / stainless steel: 0,79
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M8 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 5kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1,8V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 20g
- Housing Material:
- Nickel-plated brass
- Connections:
- M8 Plug
- Active Head Material:
- PBT
- Tightening torque:
- 3Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M8
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M8x1
- Mechanical Protection:
- IP67
