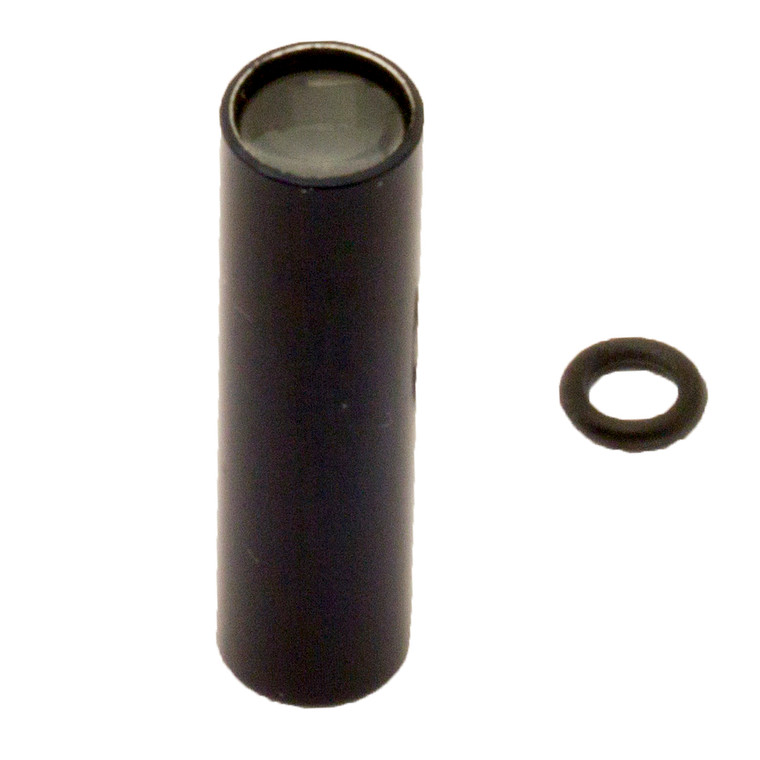

Datasensing AF/FC1 Sensors
Datasensing
$58.58
The Datasensing AF/FC1 Sensors are designed for precision and versatility, featuring a 10 mm scanner glass focaliser. These sensors offer a wide range of models, including ultra-slim options for detecting small objects and models capable of handling long distances. The spiral tube design enhances handling capabilities, while the flexible fibre heads with sleeves provide adaptability for various applications. The sensors are equipped with a wide range of cutting fibre units and boast a robust IP67 protection degree, ensuring durability in challenging environments.
Compatible with the SSF, FS1, FX3, and FX4 series, these sensors offer connectivity and flexibility for diverse industrial needs. The sensors are CE approved, guaranteeing compliance with European safety standards. With a distance capability of 25 mm for SSF and FS1 models, and 30 mm for FX3 and FX4 models, these sensors are ideal for precise scanning tasks. The operating temperature range of -40°C to +125°C ensures reliable performance in extreme conditions.
Constructed with a glass and nickel-plated brass material, the sensors feature a Ø 6.5 mm head shape and an M4 thread, providing a secure and stable installation. The Ø optical fibre core measures 1, contributing to the sensor's high precision and accuracy. With mechanical protection rated at IP67 (EN60529), these sensors are built to withstand harsh industrial environments, making them a reliable choice for various scanning applications.
- Distance with SSF:
- 25 mm
- Distance with FS1:
- 25 mm
- Distance with FX3:
- 30 mm
- Distance with FX4:
- 30 mm
- Function Principle:
- Scanner
- Fibre model:
- CV/CB1-**
- Ø optical fibre core:
- 1
- Head shape:
- Ø 6,5 mm
- Material:
- glass, nickel plated brass
- thread:
- M4
- Degree of protection:
- IP67 (EN60529)
- Mechanical Protection:
- IP67 (EN60529)
