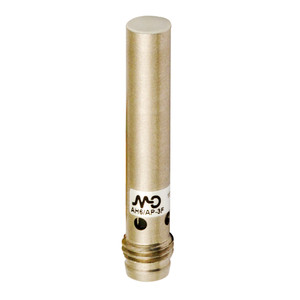

Datasensing AH6/AN-3F Sensors

The Datasensing AH6/AN-3F Sensors are compact inductive sensors designed for precision and reliability. With a nominal sensing distance of 2mm and an operating range of 0 to 1.62mm, these sensors are ideal for applications requiring close proximity detection. The sensor features a robust stainless steel housing with a diameter of Ø6.5mm and a length of 40mm, ensuring durability and resistance to harsh environments. The LED status indicator provides 360° visibility, allowing for easy monitoring of the sensor's output state. Engineered with IP67 protection, the AH6/AN-3F Sensors are safeguarded against dust and water ingress, making them suitable for industrial settings. The sensors offer complete protection against electrical damages, including short-circuit, reverse polarity, and impulsive overvoltage protection. They are equipped with an NPN output type and a normally open (NO) output function, with a switching frequency of 5kHz for rapid response. The sensors are designed to handle a load current of up to 200mA, with a low no-load supply current of ? 10mA and a minimal output voltage drop of ? 1.8V at 200mA. The AH6/AN-3F Sensors are compatible with a wide operating voltage range of 10 to 30Vdc and feature a time delay before availability of ? 50ms. Constructed with AISI303 stainless steel and a PBT active head material, these sensors are built to withstand operating temperatures from -25°C to +70°C. They are CE and UR approved, ensuring compliance with international standards, and offer excellent EMC compatibility as per IEC 60947-5-2. The sensors are also designed to endure shocks and vibrations, adhering to IEC 60068-2-6 and IEC 60068-2-27 standards. For applications requiring ATEX models, category 3 options are available upon request, providing additional safety in explosive atmospheres. The Datasensing AH6/AN-3F Sensors are the perfect choice for those seeking reliable, high-performance proximity sensing solutions in a compact form factor.
