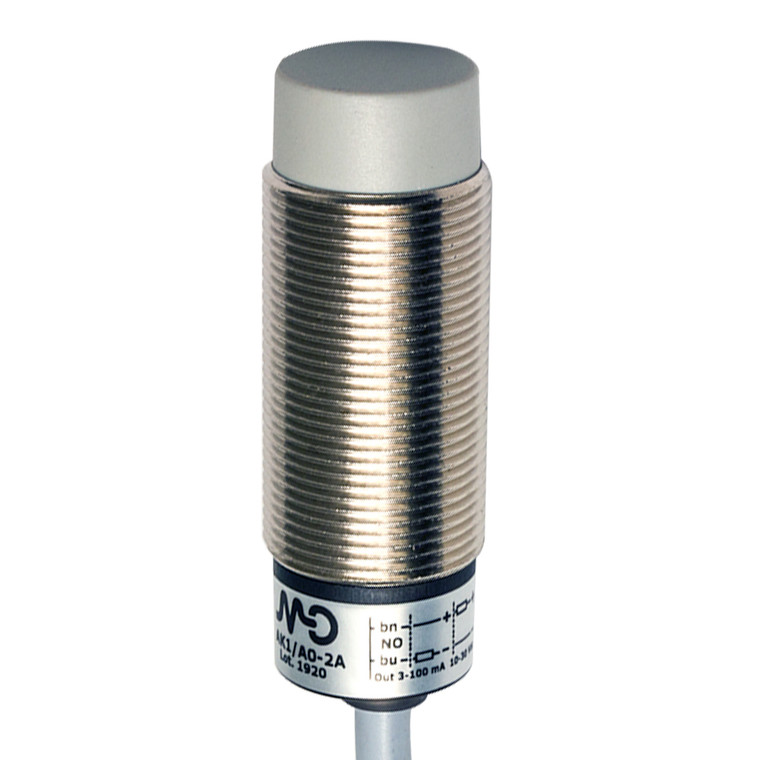

Datasensing AK1/A0-2AAN Sensors
Datasensing
$70.88
The Datasensing AK1/A0-2AAN Sensors are high-performance inductive sensors designed for demanding industrial environments. Featuring an M18 unshielded design, these sensors offer a nominal sensing distance of 8mm and an operating distance range of 0 to 6.48mm. They are equipped with a 2-meter PVC cable for easy installation and connectivity.
Constructed with durable nickel-plated brass housing and a PBT active head, these sensors ensure reliable operation in temperatures ranging from -25°C to +70°C. The sensors are designed with a NO (Normally Open) output function and support both NPN and PNP output types, with a switching frequency of 300Hz. They operate efficiently within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 20mA and a load current capacity of 3 to 100mA.
The AK1/A0-2AAN Sensors are equipped with multiple protective features, including short-circuit protection, reverse polarity protection, impulsive overvoltage protection, and protection against inductive loads. The sensors also feature a yellow LED indicator for output state visibility and have a time delay before availability of ? 50ms.
With a mechanical protection rating of IP67, these sensors are resistant to dust and water ingress, making them suitable for harsh environments. They are compliant with EMC compatibility standards IEC 60947-5-2 and are approved with CE and UR certifications. Additionally, the sensors come with two M18x1 nuts for secure mounting.
Ideal for proximity sensing applications, the Datasensing AK1/A0-2AAN Sensors offer exceptional performance and reliability, making them a valuable addition to any industrial automation setup.
- Nominal sensing distance:
- 8mm
- Operanting distance:
- 0 6,48mm
- Standard target:
- 24x24mm FE360
- Correction Factor:
- copper: 0,45 / aluminium: 0,53 / brass: 0,56 / stainless steel: 0,77
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN/PNP
- Output Function:
- NO
- Switching frequency:
- 300Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- 3 100mA
- Leakage current:
- ? 0,? 8mA
- Output voltage drop:
- ? 2,8V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE UR II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M18x1
- Dimensions:
- M18 x 1 / L = 50mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
- User Manuals:
- View
