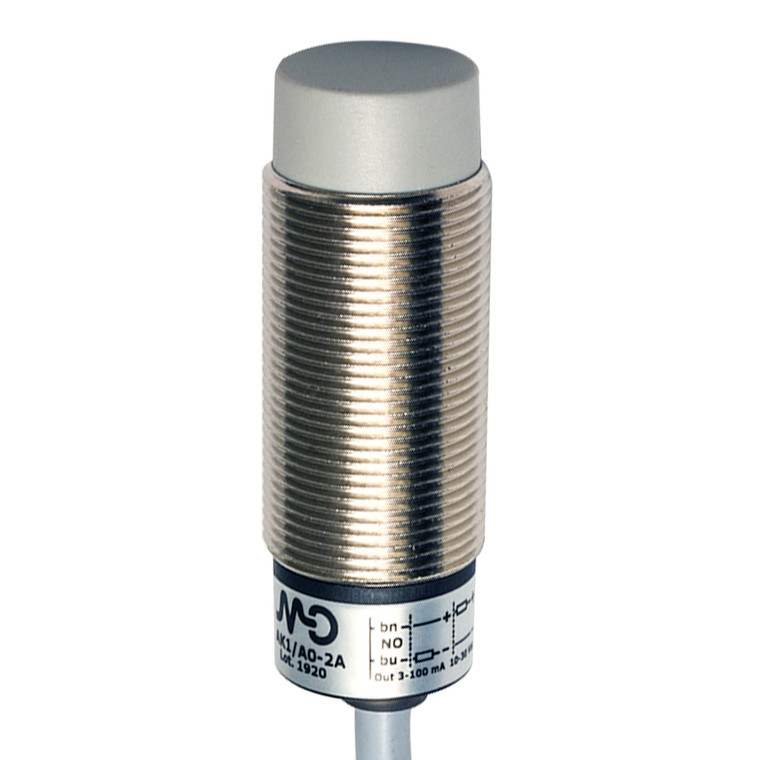

Datasensing AK1/AP-2A86 Sensors
Datasensing
$49.16
The Datasensing AK1/AP-2A86 Sensors are high-performance inductive sensors designed for precision and reliability. Featuring an M18 unshielded design, these sensors operate with a nominal sensing distance of 8mm and an operating distance of 0 to 6.48mm. They are equipped with a PNP output type and a normally open (NO) output function, ensuring efficient proximity detection. The sensors are constructed with a durable nickel-plated brass housing and a PBT active head, providing robust protection against environmental factors.
With a switching frequency of 600Hz and an operating voltage range of 10 to 30Vdc, these sensors are suitable for a wide range of industrial applications. They offer excellent repeat accuracy of less than 5% and a thermal drift of Sr under 10%, ensuring consistent performance. The sensors are equipped with a 5m PVC cable for easy installation and connectivity.
Additional features include short-circuit, reverse polarity, impulsive overvoltage, and inductive load protection, enhancing the sensor's durability and reliability. The yellow LED indicator provides a clear output state, while the IP67 mechanical protection rating ensures resistance to dust and water ingress. The sensors are CE and UR approved, with EMC compatibility according to IEC 60947-5-2 standards, and are designed to withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. Supplied with two M18x1 nuts, these sensors are ready for immediate integration into your system.
- Nominal sensing distance:
- 8mm
- Operanting distance:
- 0 6,48mm
- Standard target:
- 24x24mm FE360
- Correction Factor:
- copper: 0,45 / aluminium: 0,53 / brass: 0,56 / stainless steel: 0,77
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M18 standard no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 600Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Housing Material:
- Nickel-plated brass
- Connections:
- 5m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 25Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M18
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M18x1
- Dimensions:
- M18 x 1 / L = 50mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
- User Manuals:
- View
