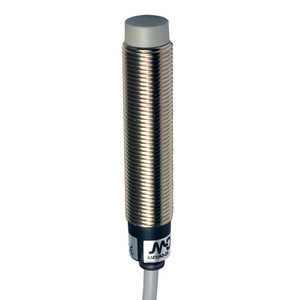

Datasensing AM1/A0-2A Sensors

The Datasensing AM1/A0-2A Sensors are high-performance inductive sensors designed for precision and reliability. Featuring an M12 unshielded NO cable with a 2m axial connection, these sensors offer a nominal sensing distance of 4mm and an operating distance of 0 to 3.2mm. They are equipped with a standard target size of 12x12mm FE360 and provide correction factors for various materials, including copper (0.52), aluminium (0.57), brass (0.62), and stainless steel (0.87). With a thermal drift of Sr less than 10% and repeat accuracy under 5% at 24V and 23°C ±5°C, these sensors ensure consistent performance. The hysteresis ranges from 1 to 20%, and they support a switching frequency of 1.5kHz. Operating on a voltage range of 10 to 30Vdc, they have a no-load supply current of ? 10mA and a load current capacity of 3 to 100mA. The sensors feature a leakage current of ? 0.8mA and an output voltage drop of ? 2.8V at 100mA, with a maximum ripple content of ? 10%. Designed with user safety in mind, the sensors include short-circuit, reverse polarity, impulsive overvoltage, and inductive load protection. The yellow LED indicator provides a clear output state, and the sensors are ready for use with a time delay of ? 50ms. Constructed from durable nickel-plated brass with a PBT active head, they are built to withstand harsh environments, offering an IP67 degree of protection and compliance with IEC 60947-5-2 for EMC compatibility. The sensors are supplied with two M12x1 nuts for easy mounting and are capable of withstanding shocks and vibrations as per IEC standards. With an operating temperature range of -25°C to +70°C, they are suitable for a wide range of industrial applications. The compact design, with dimensions of M12 x 1 and a length of 60mm, ensures easy integration into existing systems. CE and UR approved, these sensors are a reliable choice for proximity detection needs.
