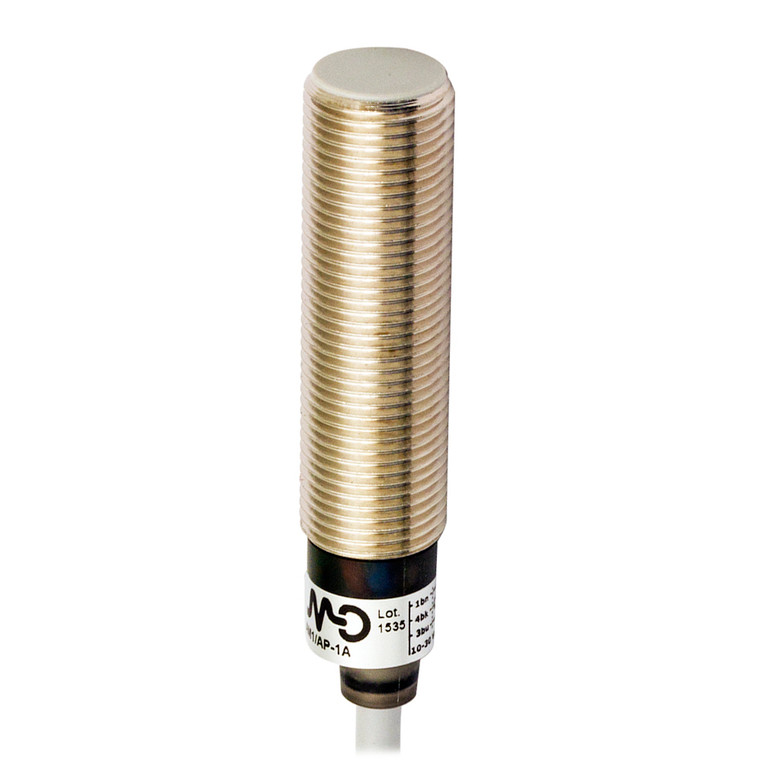

Datasensing AM1/AP-1A864W Sensors

The Datasensing AM1/AP-1A864W Inductive Sensor is designed for precision and reliability in industrial applications. Featuring a shielded M12 housing made from durable AISI303 stainless steel, this sensor offers a nominal sensing distance of 2mm and operates effectively within a range of 0 to 1.62mm. It is equipped with a 5-meter PVC cable for flexible installation and an axial design for streamlined integration. This sensor is engineered with a PNP output type and a normally open (NO) output function, ensuring efficient proximity detection. It operates at a switching frequency of 2kHz and supports an operating voltage range of 10 to 30Vdc. The sensor is designed to handle a load current of up to 200mA, with a no-load supply current of ? 10mA and a leakage current of ? 10?A. The output voltage drop is maintained at ? 1.8V at 200mA, ensuring minimal power loss. The AM1/AP-1A864W is built to withstand harsh environments, with an IP67 mechanical protection rating and compliance with EMC standards IEC 60947-5-2. It is resistant to shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. The sensor includes short-circuit, reverse polarity, and impulsive overvoltage protection, along with protection against inductive loads. Additional features include a yellow LED indicator for output state, a time delay before availability of ? 50ms, and a thermal drift of Sr of less than 10%. The sensor's repeat accuracy is maintained at less than 5% under specified conditions, with a hysteresis range of 1 to 20%. It comes with two M12x1 nuts for secure mounting and is approved with CE and UR certifications. Ideal for applications requiring precise proximity sensing, the Datasensing AM1/AP-1A864W is a robust and reliable choice for industrial automation needs.
