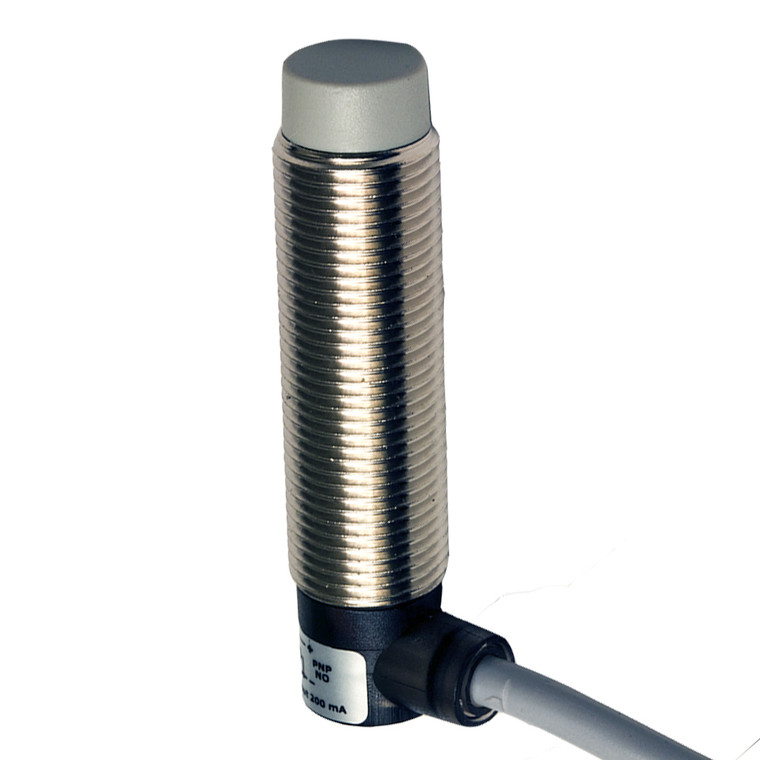

Datasensing AM1/CN-2C Sensors

The Datasensing AM1/CN-2C Sensors are high-performance inductive sensors designed for precision and reliability. With a nominal sensing distance of 4mm and an operating range of 0 to 3.2mm, these sensors are ideal for detecting standard targets of 12x12mm FE360. They feature a robust nickel-plated brass housing and an active head made of PBT, ensuring durability in various industrial environments. These sensors offer a wide range of models, including standard, short body, and long-distance options, with output configurations available in cable, M12, and M8 plug cable exits. They support both 2 and 3 wire models, with ATEX category 3 models available upon request for hazardous environments. The AM1/CN-2C Sensors are equipped with NPN output type and NC output function, providing a switching frequency of 2kHz. They operate efficiently within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The sensors are designed with multiple protective features, including short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads. With a high degree of mechanical protection rated at IP67, these sensors are resistant to shocks and vibrations as per IEC standards. They are equipped with a yellow LED indicator for output state and have a time delay before availability of ? 50ms. The sensors are easy to install with a 2m PVC cable and 90° output, and they come with two M12x1 nuts for secure mounting. Operating efficiently in temperatures ranging from -25°C to +70°C, the Datasensing AM1/CN-2C Sensors are CE and UR approved, ensuring compliance with international safety and quality standards.
