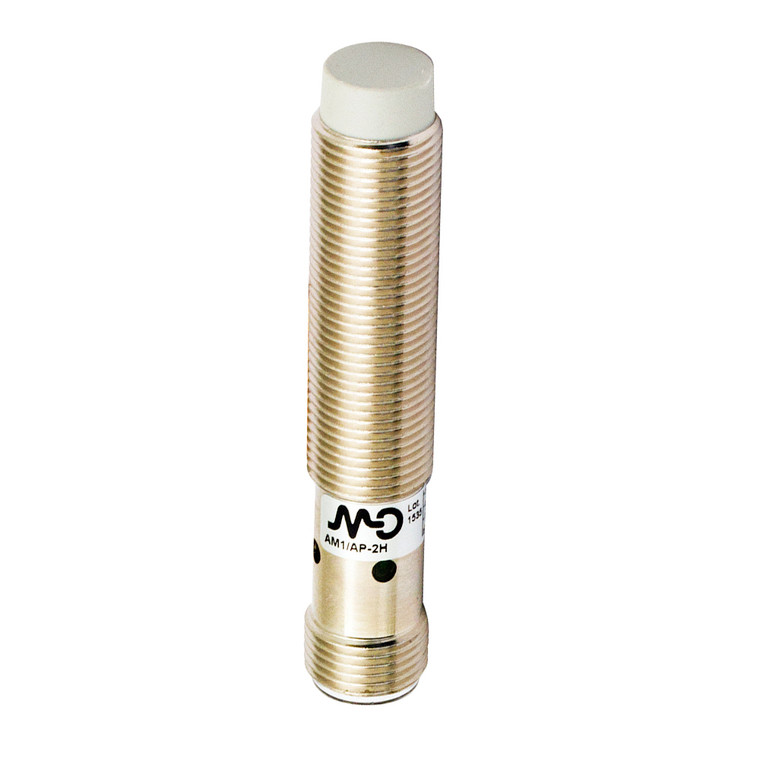

Datasensing AM1/CN-2H Sensors

The Datasensing AM1/CN-2H Sensors are high-performance inductive sensors designed for precision and reliability in various industrial applications. Featuring a nominal sensing distance of 4mm and an operating range of 0 to 3.2mm, these sensors are ideal for detecting standard targets of 12x12mm FE360. With a robust nickel-plated brass housing and an IP67 degree of protection, they are built to withstand harsh environments and offer excellent resistance to shocks and vibrations. These sensors come equipped with an NPN output type and an NC output function, ensuring efficient proximity detection with a switching frequency of 2kHz. The M12 unshielded design allows for easy installation, and the M12 plug connection provides secure and reliable connectivity. The sensors are protected against short circuits, reverse polarity, impulsive overvoltage, and inductive loads, ensuring long-lasting performance and safety. The AM1/CN-2H Sensors feature a yellow LED indicator for output state visibility and have a time delay before availability of ? 50ms. They operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The sensors exhibit minimal thermal drift and repeat accuracy, making them suitable for precise applications. With a compact design measuring M12 x 1 / L = 64.8mm and a weight of 30g, these sensors are easy to integrate into existing systems. They are approved by CE and UR, ensuring compliance with international standards, and are compatible with EMC standards IEC 60947-5-2. Supplied with two M12x1 nuts, the Datasensing AM1/CN-2H Sensors are a reliable choice for your sensing needs.
