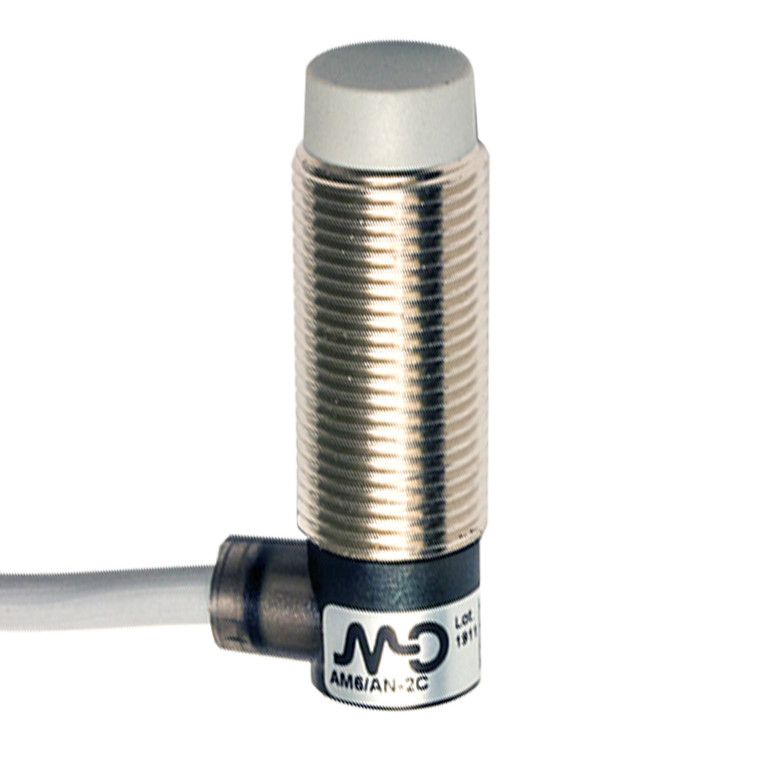

Datasensing AM6/AP-2C86 Sensors

The Datasensing AM6/AP-2C86 Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a compact M12 short unshielded design, these sensors offer a nominal sensing distance of 4mm and an operating distance of 0 to 3.2mm, making them ideal for various industrial applications. The sensors are equipped with a PNP output type and a normally open (NO) output function, ensuring efficient proximity detection with a switching frequency of 2kHz. Constructed with a durable nickel-plated brass housing and a PBT active head, these sensors are built to withstand harsh environments, offering mechanical protection rated at IP67. The sensors are designed to operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. They feature a low output voltage drop of ? 1.8V at 200mA and are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection for enhanced safety and reliability. The AM6/AP-2C86 Sensors come with a 5m PVC cable with a 90° output for flexible installation options. They are compatible with standard targets of 12x12mm FE360 and offer correction factors for various materials, including copper, aluminum, brass, and stainless steel. With a thermal drift of Sr of less than 10% and a repeat accuracy of less than 5%, these sensors ensure consistent performance across a wide operating temperature range of -25°C to +70°C. Additional features include a yellow LED indicator for output state, a time delay before availability of ? 50ms, and supplied accessories such as two M12x1 nuts for secure mounting. The sensors are CE and UR approved, with EMC compatibility according to IEC 60947-5-2 standards, and are designed to withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards.
