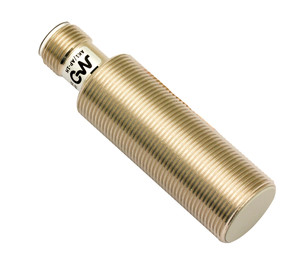

Datasensing AM6/AP-3HAN Sensors

The Datasensing AM6/AP-3HAN Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring a compact M12 shielded short case, these sensors offer a nominal sensing distance of 4mm and an operating distance of 0 to 3.2mm, making them ideal for various industrial applications. The sensors are equipped with a PNP output type and a normally open (NO) output function, ensuring reliable performance with a switching frequency of 2kHz. Constructed with a durable nickel-plated brass housing and an active head made of PBT, these sensors are built to withstand harsh environments, offering mechanical protection rated at IP67. They are designed to operate efficiently within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 10mA and a load current of ? 200mA. The sensors also feature a low output voltage drop of ? 1.8V at 200mA and a maximum ripple content of ? 10%. For enhanced safety and reliability, the AM6/AP-3HAN Sensors include short-circuit protection, reverse polarity protection, impulsive overvoltage protection, and protection against inductive loads. The sensors are equipped with a yellow LED indicator to display the output state and have a time delay before availability of ? 50ms. With approvals such as CE and UR, and compliance with EMC compatibility standards IEC 60947-5-2, these sensors are suitable for use in hazardous environments, certified for II 3G Ex nA IIC T6 Gc and II 3D Ex tc IIIB T85°C Dc. The sensors come with two M12x1 nuts for easy mounting and are designed to withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. Operating efficiently in temperatures ranging from -25°C to +70°C, the Datasensing AM6/AP-3HAN Sensors are a reliable choice for demanding industrial applications.
