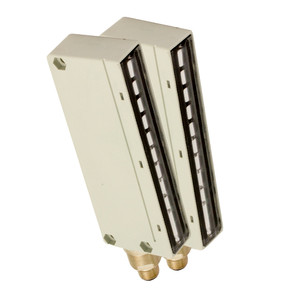

The Datasensing BX10SR/0A-HBLSAN Sensors are designed for precise and reliable area sensing applications. This sensor kit operates within a voltage range of 10 to 26VDC and features 10 adjustable beams with a nominal sensing distance of 0.3 to 2 meters. The sensors are equipped with anti-interference strobe lights and are certified for use in hazardous environments, meeting II 3G Ex nA IIC T6 and II 3D Ex tD A22 IP67 T85°C standards.
The BX10SR/0A-HBLSAN Sensors utilize an emitter-receiver function principle, with a trimmer for sensitivity adjustment, allowing for the detection of objects as small as 5mm in diameter. The controlled height of the sensing area is 90mm, with a beam spacing of 10mm. The sensors offer both NPN and PNP output types with a normally open (NO) output function, and a switching frequency of 180Hz ensures quick response times of 500µs for light/dark transitions and 5ms for dark/light transitions.
Built with durability in mind, the sensors feature a robust PBT housing and a PC active head material, providing IP67 mechanical protection. The sensors are equipped with LED indicators for easy status monitoring: green for power ON, yellow for output state, and red for alignment. Additional features include short-circuit protection with auto-reset, reverse polarity protection, and impulsive overvoltage protection.
The BX10SR/0A-HBLSAN Sensors are supplied with essential accessories, including four M18x1 nuts, an adjustment key, and two 90° angled brackets, ensuring easy installation and setup. With a weight of 230g and dimensions of 45x145x20mm, these sensors are compact yet powerful, making them ideal for a wide range of industrial applications.
- Nominal sensing distance:
- 0,3 2m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 10mm
- controlled height:
- 90mm
- minimum detectable object:
- Ø 5mm
- number of rays:
- 10
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Emitter- Receiver
- Emitter/Receiver Code:
- BX10SR/0A-HBLSAN
- Emitter Code:
- BX10S/00-HBLSAN
- Receiver Code:
- BX10R/AD-HBLSAN
- Output type:
- NPN + PNP
- Output Function:
- NO
- Switching frequency:
- 180Hz
- Resposnse time for light/dark transition:
- 500µs
- Resposnse time for dark/light transition:
- 5ms
- Operating Voltage:
- 10 26VDC
- No-Load supply current:
- 75mA
- Load current:
- ?100mA
- Leakage current:
- 10?A
- Output voltage drop:
- ?2V Iload = 100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Emitter: Green (powerON) Receiver: Yellow (output state) Red (alineament)
- Time delay before availability:
- ? 85ms
- Short-circuit protection:
- autoreset
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared
- Interference to external light:
- 1000lux (incandescent lamp), 1500lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 230g
- Housing Material:
- PBT
- Connections:
- M12 Plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Supplied Accessories:
- 4 nuts M18x1 - 1 adjustment key - 2 90°angled brackets
- Dimensions:
- 45x145x20
- Operating Temperature:
- 0°C + 50° C (without freeze)
- Mechanical Protection:
- IP67
