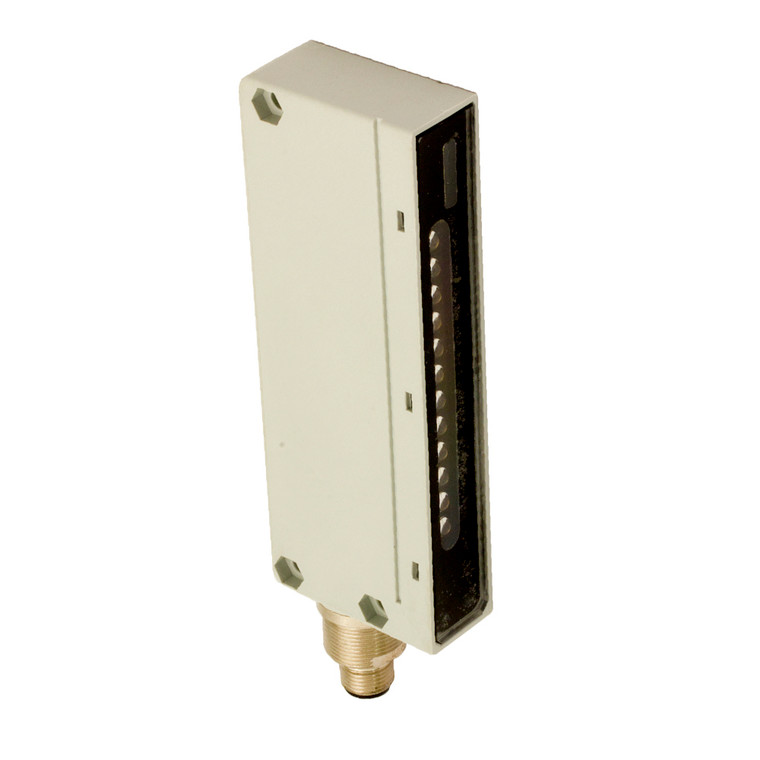

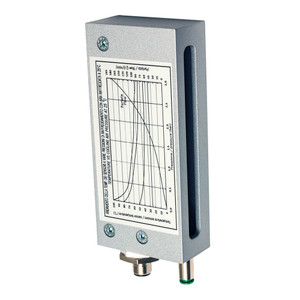

The Datasensing BX80A/1P-0H9K Sensors are high-performance area sensor receivers designed for precision and reliability in demanding environments. With a controlled height of 70 mm and an operating distance of up to 2 meters, these sensors are equipped with a microprocessor-based circuit for enhanced sensitivity adjustment. The robust cubic housing, made from durable PBT material, ensures long-lasting performance, while the metallic enclosure offers additional protection for high-duty use.
Featuring a nominal sensing distance of 0 to 2 meters and a thermal drift of Sr ?10%, the BX80A/1P-0H9K Sensors are capable of detecting objects as small as Ø 6mm with a beam spacing of 6mm. The sensor operates on a 12 to 24 VDC power supply, with a no-load supply current of 50mA and a load current of ?100mA. It includes PNP output type with NO/NC output function, and a response time of just 10ms.
The sensor is equipped with LED indicators for easy status monitoring: green for power ON, red for alignment, and yellow for output state. It also features short-circuit protection with auto reset, reverse polarity protection, and impulsive overvoltage protection, ensuring reliable operation in various conditions. The sensor is resistant to external light interference, with a maximum of 1,500 lux for incandescent lamps and 4,500 lux for sunlight.
With dimensions of 44mm x 120mm x 20mm and a weight of 260 to 300g, the BX80A/1P-0H9K Sensors are compact yet powerful. They come with an M12 plug connection and are supplied with 2 nuts M18x1, an adjustment key, and a 90° angled bracket for easy installation. The sensors are approved by CE and cULus, and comply with EMC compatibility standards IEC 60947-5-2, as well as shocks and vibrations standards IEC EN 60947-5-2. They offer a high degree of protection with an IP69K rating, making them suitable for use in harsh environments with operating temperatures ranging from -25°C to +50°C.
- Nominal sensing distance:
- 0 2m
- Thermal drift of Sr:
- ?10%
- Beams space:
- 6mm
- controlled height:
- 70mm
- minimum detectable object:
- Ø 6mm
- number of rays:
- 12
- Function Principle:
- Receiver
- Output type:
- PNP
- Output Function:
- NO/NC
- Response time:
- 10ms
- Operating Voltage:
- 12 24 VDC
- No-Load supply current:
- 50mA
- Load current:
- ?100mA
- Leakage current:
- 10µA
- Output voltage drop:
- ?1.2V Iload =100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Green (powerON), red (alignment), yellow (output state)
- Time delay before availability:
- 500ms
- Short-circuit protection:
- Yes (auto reset)
- Reverse Polarity Protection:
- Yes
- Interference to external light:
- 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 44mm x 120mm x 20mm
- Weight:
- 260 300g
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Storage temperature:
- -40°C +80°C
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP69K
- Supplied Accessories:
- 2 nuts M18x1 - 1 adjustment key - 1 90°angled brackets
- Dimensions:
- 45x145x20
- Mechanical Protection:
- IP69K
