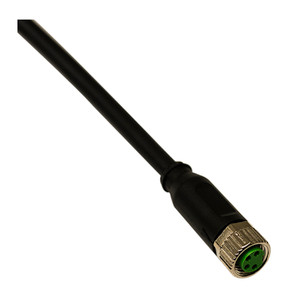

Datasensing CD12M/0B-100A1 Sensors
Datasensing
$27.09
CON M12 ASS. CEI 2022II 4P RoHs Comp.
- Nominal current:
- Max. 4 A
- Wires:
- 4
- Rated impulse voltage:
- 2,5 kV
- Nominal voltage:
- Max. 250 V ac/dc
- Tightening torque:
- 0,6 Nm
- Fibre lengh (m):
- 10
- Head type:
- Axial
- Plug:
- M12
- Outer diameter:
- Ø 5 mm ± 5%
- Jacket material:
- PVC (CFC, cadmium, silicon, lead free) Flame retardant according to UL1581VW1/CSA FT1, self-extinguishing
- Wire isolation:
- PVC (CFC, cadmium, silicon, lead free)
- Bending radius:
- Wire for fixed installation: 5 x d Wire for flexible installation: 10 x d
- Conductors section:
- 0,34 mm2 (19 x 0,15 mm2)
- Model:
- Female
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
