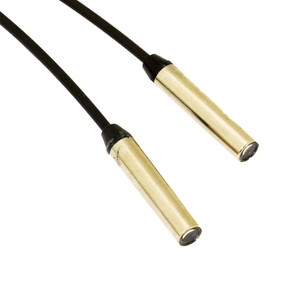

The Datasensing CF/CA1-20 Sensors are designed for precision and versatility, featuring a wide range of models suitable for various applications. These sensors are equipped with ultra-slim designs for detecting small objects and are capable of long-distance scanning. The spiral tube design enhances handling flexibility, while the cutting fibre units offer adaptability for diverse needs. With a protection degree of IP67, these sensors are built to withstand harsh environments. They are compatible with the SSF, FS1, FX3, and FX4 series, providing connectivity options for different setups. The sensors operate on a diffuse reflection principle using plastic optical fibres, with an axial optic position and a head shape of M5. The optical fibre core has a diameter of 0.5 mm, made from PE plastic, and the head is constructed from durable inox material. These sensors can function in extreme temperatures ranging from -40°C to +70°C, ensuring reliable performance in various conditions. Accessories such as the AF/1A2 are available separately to enhance functionality. CE approved, the Datasensing CF/CA1-20 Sensors are a robust choice for industrial applications requiring precision and durability.
- Distance with SSF:
- 60 mm
- Distance with FS1:
- 60 mm
- Distance with FX3:
- 140 mm
- Distance with FX4:
- 140 mm
- Function Principle:
- Diffuse reflection
- Description:
- Plastic optical fibres
- Optic position:
- Axial
- -:
- Yes
- Ø optical fibre core:
- 0,5 mm
- Head shape:
- M5
- Optical fibre material:
- PE, plastic
- Head material:
- inox
- Degree of protection:
- IP67
- Accessories to be ordered separately:
- AF/1A2 (fornito a corredo)
- Mechanical Protection:
- IP67
