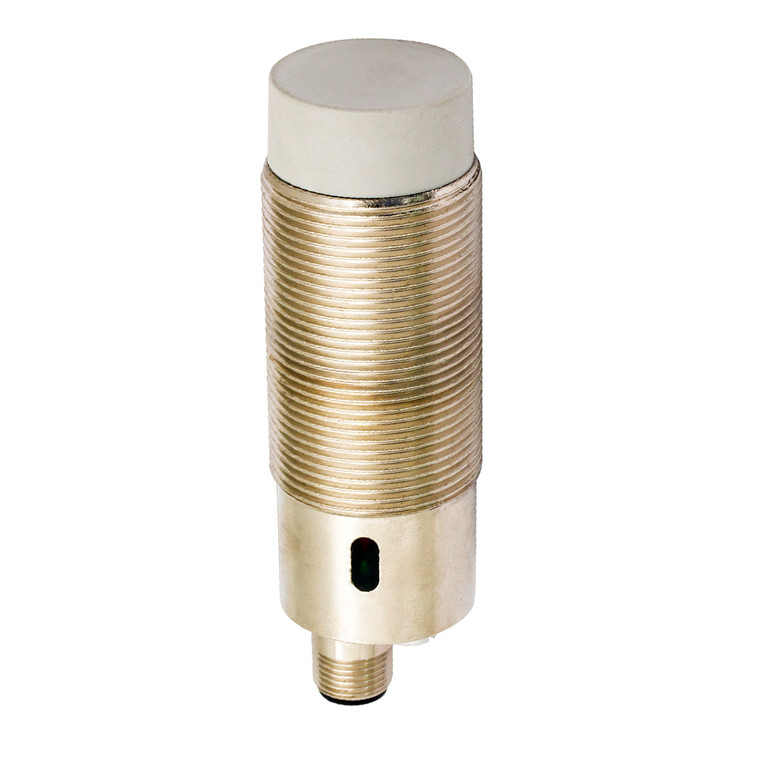

Datasensing CT1/CP-2H Sensors
Datasensing
$187.78
The Datasensing CT1/CP-2H Sensors are designed for precision and reliability in various industrial applications. These capacitive sensors feature a nominal sensing distance ranging from 2 to 20mm, with a thermal drift of less than 20% and a repeat accuracy of 10%. The sensitivity can be easily adjusted using the built-in trimmer, ensuring optimal performance tailored to your needs.
Housed in durable nickel-plated brass, these sensors boast an IP65 protection degree, safeguarding against dust and water ingress. The robust design includes complete protection against electrical damages, with features such as short-circuit protection, reverse polarity protection, and impulsive overvoltage protection. The sensors are equipped with an axial cable exit or an M12 plug cable exit for versatile connectivity options.
With a switching frequency of 100Hz and an operating voltage range of 10 to 30Vdc, these sensors are efficient and reliable. They have a no-load supply current of ? 8mA and can handle a load current of up to 200mA. The output type is PNP with a normally closed (NC) function, and the sensors include LED indicators for easy status monitoring: a green LED for power and a red LED for object detection.
The CT1/CP-2H Sensors are designed to withstand harsh environments, with an operating temperature range of -25°C to +70°C and compliance with EMC compatibility standards IEC 60947-5-2. They are also approved by CE and cULus, ensuring high-quality performance and safety. Supplied with a screwdriver and two M30 nuts, these sensors are ready for immediate installation and use.
- Nominal sensing distance:
- 2 20mm
- Thermal drift of Sr:
- < 20%
- Repeat Accuracy:
- 10%
- Sensitivity adjustment:
- Yes
- Hysteresis:
- ? 20%
- Output type:
- PNP
- Output Function:
- NC
- Switching frequency:
- 100Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 8mA
- Load current:
- ? 200mA
- Leakage current:
- ? 10mA
- Output voltage drop:
- 0,75/1,8V max @ IL=10/200 mA
- Max ripple content:
- ?10%
- LED indicators:
- Green LED power, red LED (object detected)
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes, autoreset
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 185g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 plug
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Operating temperature:
- -25°C +70°C
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP65
- Supplied Accessories:
- screw driver, 2 x M30 nuts
- Operating Temperature:
- -25°C +70°C (without freeze)
- Mechanical Protection:
- IP65
