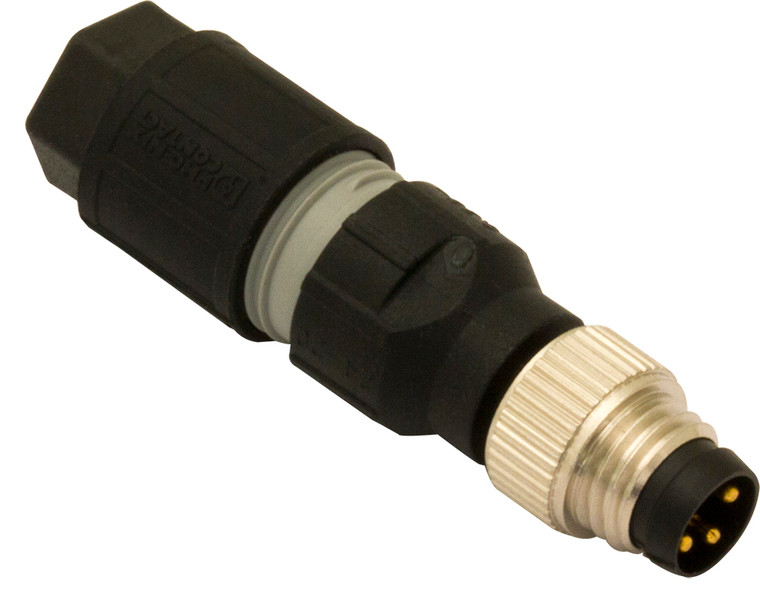

Connector Conn. M8 male 3 poles Axial a fast connection
- Fixing:
- spring terminals
- Rated current:
- a 40? 4 A
- Led:
- no
- Wires:
- 3
- Insulation resistance:
- ? 100 m?
- Contact resistance:
- ? 5 m?
- Rated voltage:
- 60 V (3 plugs) 30 V (4 plugs)
- Tightening torque:
- 0,6 Nm (pressure nut) 0,2 Nm (M8 nut)
- Head type:
- Axial
- Plug:
- M8
- Outer diameter:
- 2,5 mm...5 mm ±0,2 mm
- Stripping lenght of the sheath:
- 40 mm
- AWG conductors section:
- AWG 24 ... 20
- Conductors section:
- 0,25 mm²...0,5 mm²
- Model:
- Male
- Degree of protection:
- IP65 / IP67
- Mechanical Protection:
- IP65 / IP67
