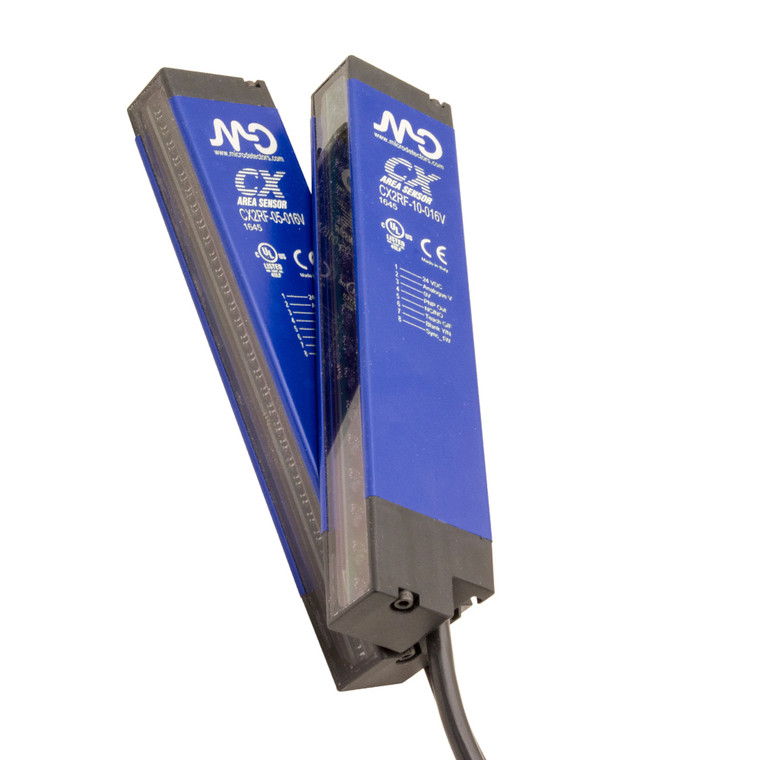

Datasensing CX2E0RA/05-048VTB Sensors

The Datasensing CX2E0RA/05-048VTB Sensors are advanced area sensors designed for precise and reliable detection. Featuring a one-cable synchronization system, these sensors offer a nominal sensing distance ranging from 0.3 to 3 meters, with a beam spacing of 5mm and a controlled height of 480mm. Equipped with 97 parallel beams, they ensure comprehensive coverage and accuracy. The sensors operate on an emitter/receiver principle, providing both analog detection and top LED indicators in blue, red, and yellow for the emitter, and green, red, and yellow for the receiver. They support a wide operating voltage range of 16.8 to 30Vdc, with a no-load supply current of ?330mA and a load current of <100mA. The output type includes 0-10V and 4-20mA, with a positive/negative slope output function, and a switching frequency of 12.3Hz. Built with robust aluminium housing and PMMA active head material, these sensors are designed to withstand harsh environments, offering mechanical protection rated at IP67. They are equipped with short-circuit and reverse polarity protection, as well as impulsive overvoltage protection, ensuring durability and reliability. The sensors are compatible with IEC 60947-5-2 standards for EMC compatibility, shocks, and vibrations. With a compact design measuring 489x36x20mm and weighing 1200g, the sensors are easy to install using the included ST151 fixing kit. They feature M12 4-pin and 8-pin connections with PVC cables for seamless integration. The operating temperature ranges from -10°C to +55°C, with a storage temperature range of -25°C to +60°C, making them suitable for various industrial applications. Approved by CE and cULus, these sensors are a dependable choice for precise area detection needs.
