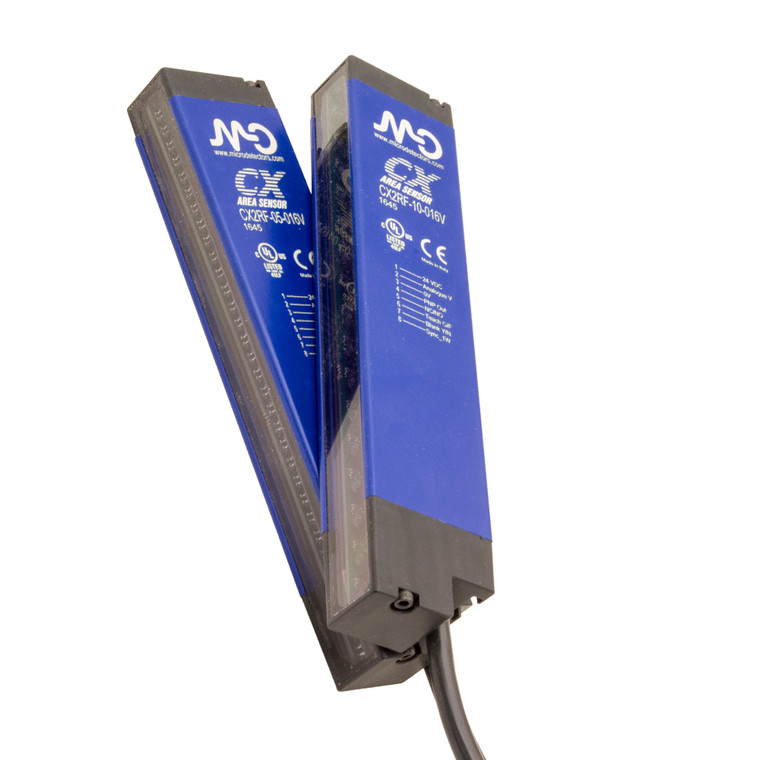

Datasensing CX2E0RA/10-080VTB Sensors

The Datasensing CX2E0RA/10-080VTB Sensors are advanced area sensors designed for precision and reliability. Featuring a one-cable synchronization system, these sensors offer a nominal sensing distance ranging from 0.3 to 6 meters, with a controlled height of 800mm and a beam spacing of 10mm. They are capable of detecting objects as small as Ø 10mm using 81 parallel beams, including a top beam for enhanced coverage. The sensors operate on a voltage range of 16.8 to 30Vdc, with a teach-in by wire sensitivity adjustment for easy setup. Equipped with both positive and negative slope output functions, the sensors provide output types of 0 to 10V and 4 to 20mA, with a switching frequency of 14.7Hz. They are designed to handle a no-load supply current of ?330mA and a load current of <100mA, ensuring efficient performance. The sensors feature robust protection mechanisms, including short-circuit, reverse polarity, and impulsive overvoltage protection, making them suitable for demanding environments. Constructed with a durable aluminium housing and PMMA active head material, the sensors are built to withstand harsh conditions, with an IP67 mechanical protection rating. They are equipped with LED indicators in blue, red, and yellow for the emitter, and green, red, and yellow for the receiver, providing clear status updates. The sensors come with an M12 4-pin and M12 8-pin connection, each with a 200mm PVC cable, and are supplied with an ST151 fixing kit for easy installation. With approvals from CE and cULus, and compliance with EMC compatibility standards IEC 60947-5-2, these sensors are reliable and safe for use in various industrial applications. They operate efficiently within a temperature range of -10°C to +55°C, with storage capabilities from -25°C to +60°C. Weighing 2250g and measuring 809x36x20mm, the Datasensing CX2E0RA/10-080VTB Sensors are a robust and versatile solution for your sensing needs.
