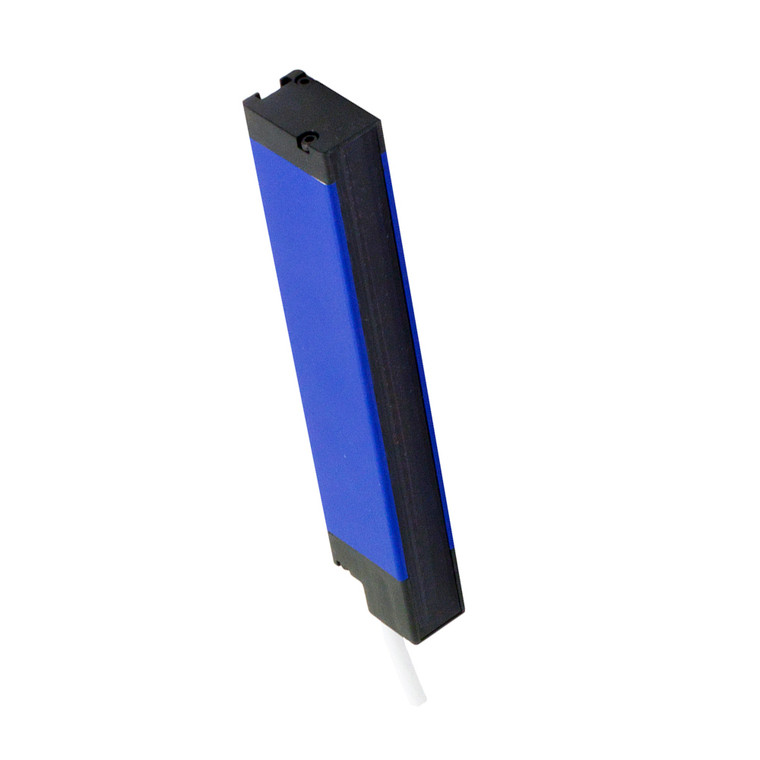

The Datasensing CX2E0RB/20-032V Sensors are designed for precise area monitoring with a nominal sensing distance ranging from 0.3 to 6 meters. Featuring a 20mm beam spacing and a controlled height of 320mm, these sensors are capable of detecting objects as small as Ø 10mm with 17 rays. The emitter/receiver function principle ensures reliable performance, with NPN and PNP output types offering both NO and NC output functions. Operating at a voltage range of 16.8 to 30Vdc, these sensors have a switching frequency of 59.5Hz and are equipped with short-circuit and reverse polarity protection.
The sensors boast a robust aluminium housing with dimensions of 20mm x 329mm x 35mm and a weight of 750g, ensuring durability and ease of installation. They are equipped with LED indicators in blue, red, and yellow for the emitter, and green, red, and yellow for the receiver, providing clear status updates. The sensors are designed to withstand operating temperatures from -10°C to +55°C and storage temperatures from -25°C to +60°C, without freezing.
With a degree of protection rated at IP67, these sensors are resistant to dust and water ingress, making them suitable for various industrial environments. The sensors come with an ST151 fixing kit for easy installation and are approved by CE and cULus standards, ensuring compliance with international safety and performance regulations. The Datasensing CX2E0RB/20-032V Sensors are an ideal choice for applications requiring high precision and reliability in challenging conditions.
- Nominal sensing distance:
- 0,3 6m
- Beams space:
- 20mm
- controlled height:
- 320mm
- minimum detectable object:
- Ø 10mm
- number of rays:
- 17
- Sensitivity adjustment:
- Teach-in by wire
- Function Principle:
- emitter/receiver
- Output type:
- NPN + PNP
- Output Function:
- NO/NC
- Switching frequency:
- 59,5Hz
- Operating Voltage:
- 16,8... 30Vdc
- No-Load supply current:
- ?330mA
- Load current:
- < 100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- < 1,5V @ 100mA
- Max ripple content:
- < 1,2Vpp
- LED indicators:
- Blue, red and yellow (emitter) - green, red and yellow (receiver)
- Time delay before availability:
- < 3s
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- Infrared (880nm)
- Interference to external light:
- IEC EN 60947-5-2
- Impulsive Overvoltage Protection:
- Yes
- Dimensions:
- 20mm x 329mm x 35mm
- Weight:
- 750g
- Housing Material:
- Aluminium
- Connections:
- M12 4pin + cable PVC 200mm
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C + 60° C (without freeze)
- Approvals:
- CE, cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- ST151 fixing kit
- Dimensions:
- 329x36x20
- Mechanical Protection:
- IP67
