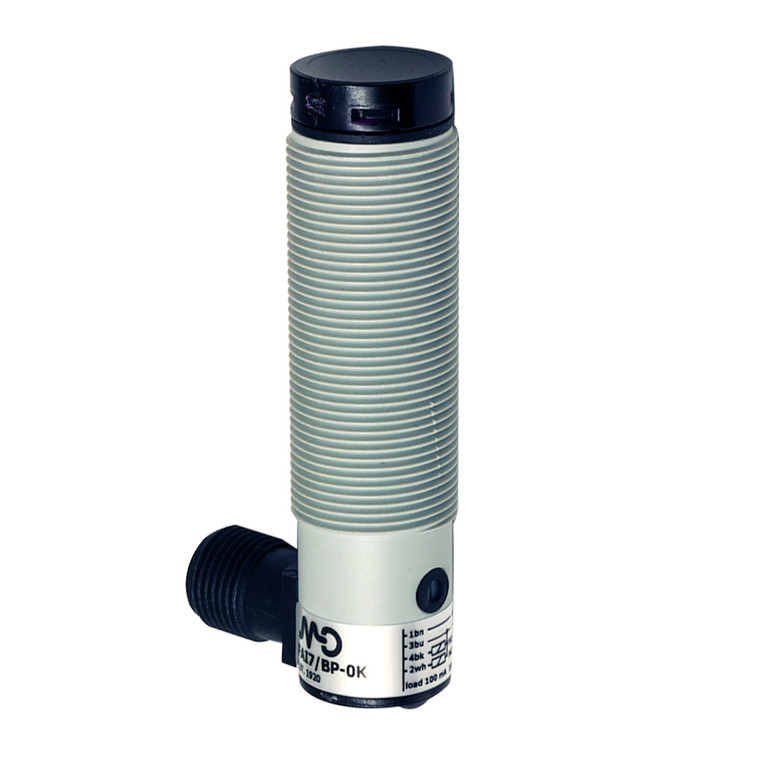

The Datasensing FAI7/BP-0K Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring an axial diffuse reflection principle, these sensors offer a nominal sensing distance of 400mm, with a thermal drift of Sr at ?10% Sr and a repeat accuracy of 5%. The sensitivity can be easily adjusted using a trimmer, ensuring optimal performance in various applications.
Constructed with a robust nickel-plated brass and PC housing, these sensors are built to withstand harsh environments, boasting an IP67 protection degree. They are equipped with PNP NO+NC output types, providing versatile output functions. The sensors operate efficiently within a voltage range of 10
30VDC, with a no-load supply current of ?30mA and a load current of ?100mA.
Designed for quick response, the sensors have a switching frequency of 250Hz and a response time of just 2ms. They are protected against short circuits, overvoltage, and reverse polarity, ensuring durability and longevity. The LED infrared emission at 880nm and high resistance to external light interference make these sensors ideal for challenging lighting conditions.
With dimensions of M18 x 1/L=67.5mm and a weight of 30g, the sensors are compact and easy to install, featuring an M12 plug connection at a 90° angle. They are approved by CE and cULus, meeting EMC compatibility standards EN 60947-5-2, and are resistant to shocks and vibrations as per IEC standards. Supplied with nuts and a screwdriver, these sensors are ready for immediate deployment in a wide range of industrial applications.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 30g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- M12 plug 90°
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
