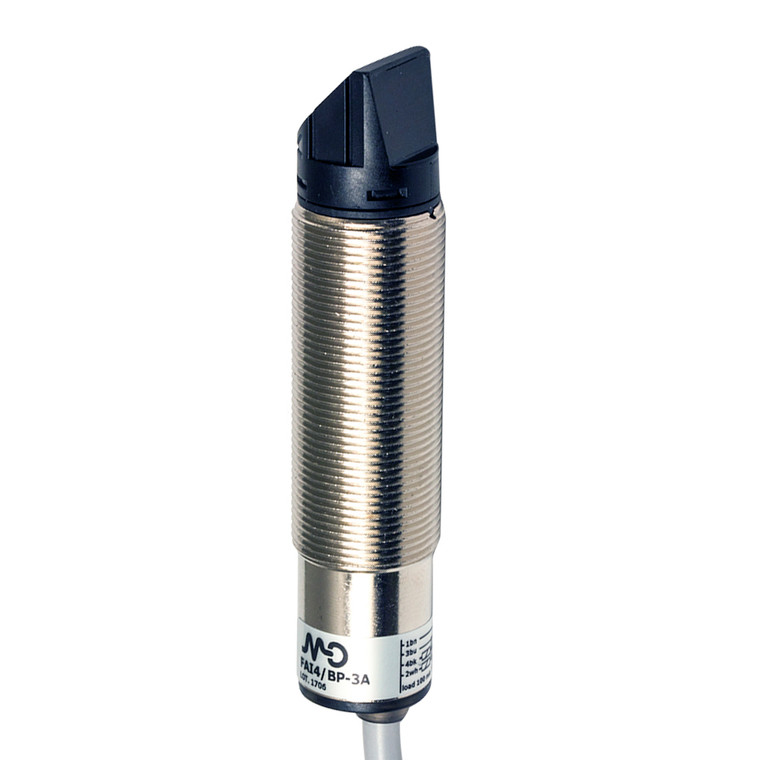

The Datasensing FAI7/BP-3A Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a 90° diffuse reflection principle, these sensors offer a nominal sensing distance of 400mm, making them ideal for medium-distance applications. With a robust nickel-plated brass housing and IP67 protection, they are built to withstand harsh environments. The sensors operate on a 10
30VDC power supply and include a 2m axial metal cable for easy installation.
Equipped with PNP NO+NC output functions, they provide flexibility in various applications. The sensors boast a high switching frequency of 250Hz and a quick response time of 2ms, ensuring efficient performance. Sensitivity can be easily adjusted using the trimmer, and the sensors are protected against short circuits, overvoltage, and reverse polarity.
The FAI7/BP-3A Sensors are CE and cULus approved, ensuring compliance with international standards. They are designed to resist interference from external light sources, withstanding up to 3000lux from incandescent lamps and 10000lux from sunlight. The sensors come with supplied accessories, including M18 x 1 nuts and a screwdriver, for convenient setup. Ideal for industrial applications, these sensors offer reliable performance and durability.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Radial 90°
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
