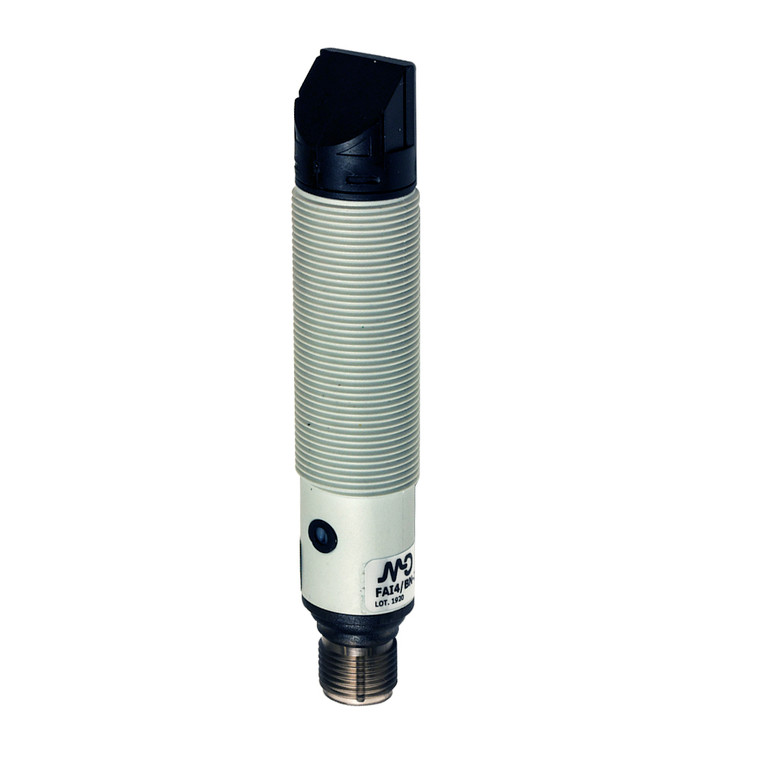

The Datasensing FAI8/BN-2E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a 90° diffuse reflection principle, these sensors offer a nominal sensing distance of 800mm, making them ideal for long-distance applications. The sensors are equipped with an NPN NO+NC output type, providing both normally open and normally closed functions for versatile integration into various systems.
Constructed with a robust PBT/PC housing and an M12 plastic connector, the FAI8/BN-2E sensors ensure durability and ease of installation. The radial optic position and sensitivity adjustment via a trimmer allow for fine-tuning to suit specific operational needs. With a high switching frequency of 250Hz and a rapid response time of 2ms, these sensors deliver quick and accurate performance.
The FAI8/BN-2E sensors are designed to withstand harsh environments, featuring IP67 protection against dust and water ingress, as well as short-circuit, overvoltage, and reverse polarity protection. They operate efficiently within a wide voltage range of 10
30VDC and are compatible with a variety of industrial applications.
Additional features include LED indicators for output status, a low no-load supply current of ?30mA, and a maximum load current of ?100mA. The sensors are also resistant to external light interference, withstanding up to 3000lux from incandescent lamps and 10000lux from sunlight. Approved by CE and cULus, these sensors meet stringent safety and performance standards, ensuring reliable operation in demanding conditions.
- Nominal sensing distance:
- 800mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Notes:
- white target Kodak 90% 400 x 400mm
- Optic position:
- Radial 90°
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
