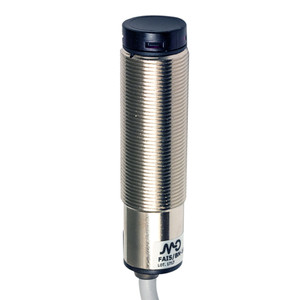

The Datasensing FAIC/BP-1A86 is a robust photoelectric sensor designed for precision and reliability. Featuring an M18 axial retroreflective design, it offers a nominal sensing distance of 5 meters, making it ideal for various industrial applications. The sensor operates with a PNP NO+NC output type, ensuring versatile connectivity options. It boasts a high switching frequency of 250Hz and a rapid response time of 2ms, allowing for quick and accurate detection.
Constructed with a durable nickel-plated brass housing and a PC active head, the sensor is built to withstand harsh environments, with an IP67 mechanical protection rating. It is equipped with a 5-meter PVC cable for easy installation and connectivity. The sensor's LED indicators provide clear status updates, with a yellow light indicating output status.
The FAIC/BP-1A86 is designed to handle a wide range of operating conditions, with a temperature range of -25°C to +70°C. It features short-circuit and overvoltage protection, as well as reverse polarity protection, ensuring reliable performance and longevity. The sensor is compatible with the RL110 reflector and is resistant to external light interference, withstanding up to 5000 lux from incandescent lamps and 10000 lux from sunlight.
With approvals from CE and cULus, and EMC compatibility with EN 60947-5-2, this sensor meets high standards of safety and performance. It also includes supplied accessories such as M18 x 1 nuts for secure mounting. The Datasensing FAIC/BP-1A86 is an excellent choice for applications requiring precise and dependable photoelectric sensing.
- Nominal sensing distance:
- 5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Retroreflective
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 5m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1
- Dimensions:
- M18 x 1/L=67,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
