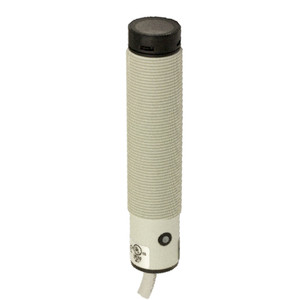

The Datasensing FAID/BP-0ADA Sensors are high-performance photoelectric sensors designed for precision and reliability. Featuring an M18 axial receiver with a nominal sensing distance of 20 meters, these sensors offer adjustable sensitivity via a trimmer, ensuring optimal performance in various applications. The PNP NO+NC output type provides versatile connectivity options, while the robust plastic housing with a glass optic ensures durability. With a switching frequency of 250Hz and a rapid response time of 2ms, these sensors are ideal for fast-paced environments. Operating within a voltage range of 10 to 30VDC, they maintain low power consumption with a no-load supply current of ? 25mA. The sensors are equipped with LED indicators for easy status monitoring and feature comprehensive protection against short circuits, overvoltage, and reverse polarity. Designed to withstand harsh conditions, they offer mechanical protection rated at IP67 and are approved by CE and cULus standards. The package includes M18 x 1 nuts and a screwdriver for easy installation. Suitable for temperatures ranging from -25°C to +70°C, these sensors are built to endure shocks and vibrations, making them a reliable choice for industrial applications.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- Glass
- Tightening torque:
- 1Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Dimensions:
- M18 x 1/L=67,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
