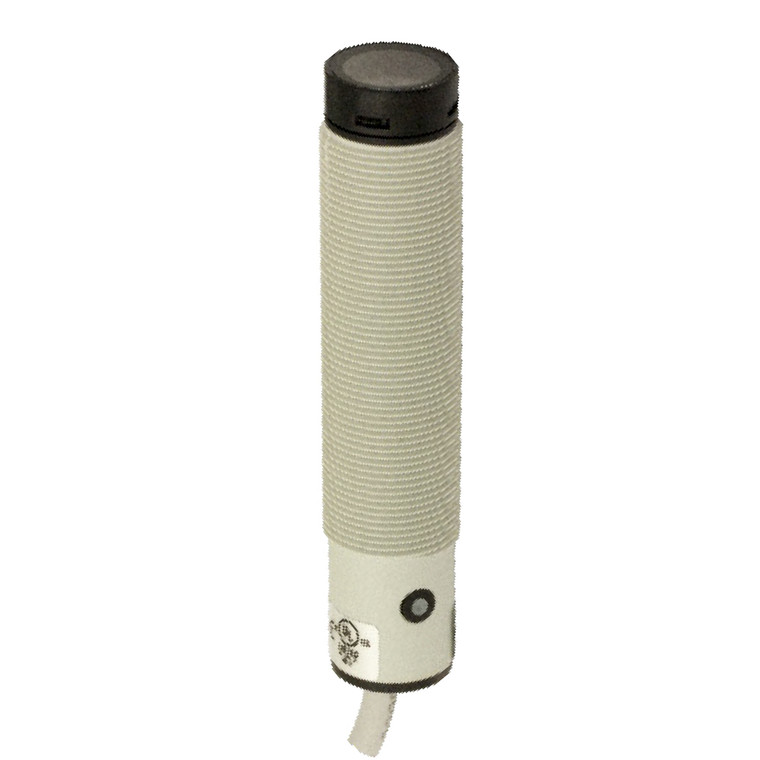

The Datasensing FAIM/BP-0AAN Sensors are advanced photoelectric sensors designed for precision and reliability in industrial environments. Featuring a nominal sensing distance of 5 meters, these sensors utilize a retroreflective function principle with an axial optic position, ensuring accurate detection. The sensors are equipped with a PNP NO+NC output type, offering both normally open and normally closed output functions. With a high switching frequency of 250Hz and a rapid response time of 2ms, they are ideal for fast-paced applications.
Constructed with durable PBT and PC materials, the sensors boast an IP67 mechanical protection rating, making them resistant to dust and water ingress. They operate efficiently within a voltage range of 10 to 30VDC, with a no-load supply current of ?30mA and a load current of ?100mA. The sensors are equipped with LED indicators for easy status monitoring and feature short-circuit and reverse polarity protection for enhanced safety.
Designed to withstand harsh conditions, the sensors are approved for use in explosive atmospheres, meeting the II 3G Ex nA IIC T6 Gc and II 3D Ex tc IIIB T85°C Dc standards. They are also EMC compatible with EN 60947-5-2 and can endure shocks and vibrations as per IEC standards. Supplied with M18 x 1 nuts and a screwdriver, these sensors are easy to install and adjust, with a sensitivity adjustment trimmer for precise calibration. Ideal for use with the RL110 reflector, they offer reliable performance even in challenging lighting conditions, with interference resistance up to 5000lux for incandescent lamps and 10000lux for sunlight.
- Nominal sensing distance:
- 5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Retroreflective
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Dimensions:
- M18 x 1/L=67,5mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
