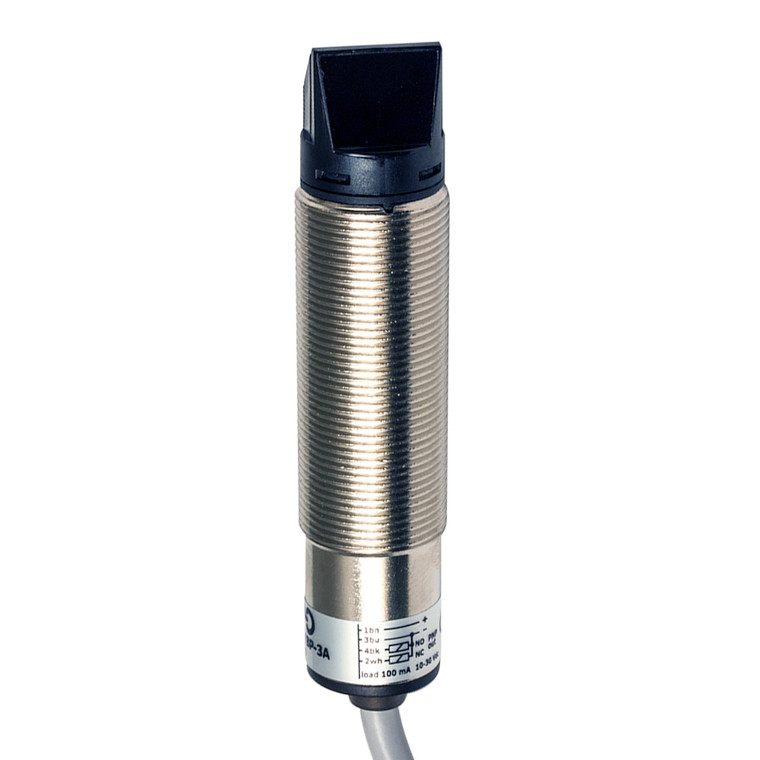

Datasensing FAIZ/BN-3A Sensors
Datasensing
$84.93
The Datasensing FAIZ/BN-3A Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a 90° radial receiver, these sensors offer a nominal sensing distance of 15 meters, making them ideal for a variety of industrial applications. With an NPN NO+NC output type, they provide versatile switching options. The sensors are housed in durable nickel-plated brass with a 2-meter PVC cable, ensuring robust performance in challenging environments. They operate efficiently within a voltage range of 10 to 30 VDC and are equipped with short-circuit and reverse polarity protection for enhanced safety. The IP67 protection degree guarantees resistance to dust and water, while the LED infrared emission ensures accurate detection even in high ambient light conditions. Compact and lightweight, these sensors are easy to install and maintain, making them a reliable choice for automated systems.
- Nominal sensing distance:
- 15m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Radial 90°
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
