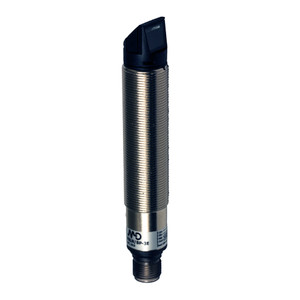

Datasensing FAL4/0N-3E Sensors
Datasensing
$292.74
The Datasensing FAL4/0N-3E Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a 90° laser diffuse reflection with a nominal sensing distance of 200mm, these sensors are ideal for short-distance applications. The NPN output type is selectable for light or dark operation, providing flexibility in various environments. With a high switching frequency of 800Hz and a rapid response time of 625µs, these sensors ensure quick and accurate detection.
The sensors are equipped with a teach-in sensitivity adjustment, allowing for easy setup and calibration. They are built to withstand challenging conditions, with a robust nickel-plated brass housing and IP67 mechanical protection. The sensors are resistant to shocks and vibrations, compliant with IEC standards, and offer short-circuit and reverse polarity protection for enhanced durability.
Operating within a voltage range of 10 to 30VDC, the sensors maintain a low no-load supply current of ?30mA and a load current of ?100mA. The LED indicators provide clear status updates, with green for power supply and yellow for light detection. The sensors are designed to handle interference from external light sources, withstanding up to 3000lux from incandescent lamps and 10000lux from sunlight.
Supplied with M18 x 1 nuts and a screwdriver, the sensors are easy to install and integrate into existing systems. With approvals from CE and cULus, and EMC compatibility with EN 60947-5-2, the Datasensing FAL4/0N-3E Sensors are a reliable choice for industrial applications requiring precise and dependable photoelectric sensing.
- Nominal sensing distance:
- 200mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- (focalized 100mm) white target 90% Kodak 200x200mm
- Optic position:
- Radial 90°
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 800Hz
- Response time:
- 625µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green power supply/yellow (LightON EG?2)/yellow flashing (LightON 1
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LASER Red (650nm) class1
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- Glass / PC
- Tightening torque:
- 25Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Dimensions:
- M18 x 1/L=107,6mm
- Operating Temperature:
- - 15°C...+ 55°C (Without freeze)
- Mechanical Protection:
- IP67
- User Manuals:
- View
