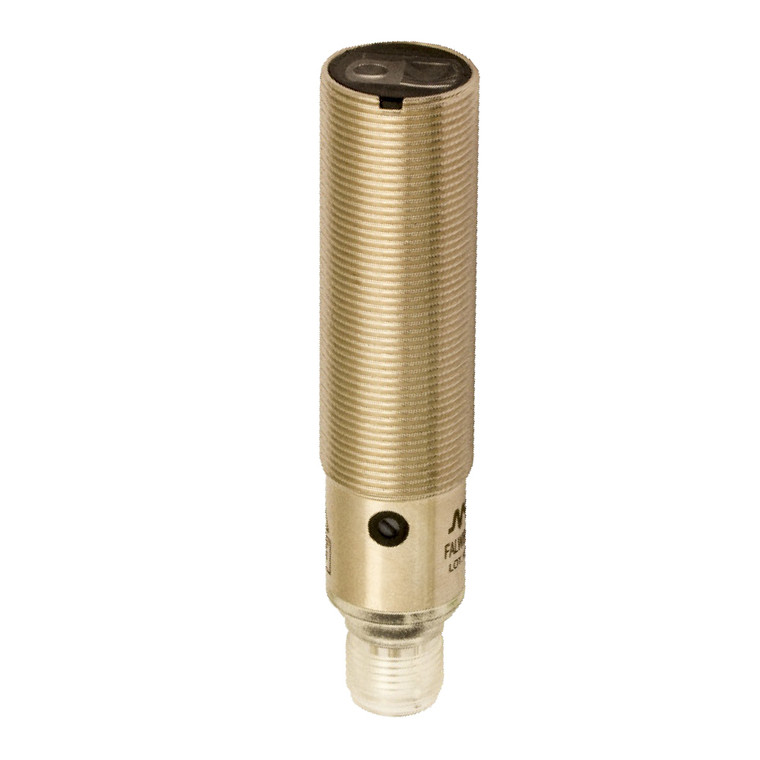

Datasensing FALW/BN-1E Sensors

The Datasensing FALW/BN-1E Sensors offer a comprehensive solution for precise detection needs, featuring a complete range of M18 sensors powered by a 10...30 Vdc supply. Designed with both axial and radial optics, these sensors boast a visible red laser emission for enhanced accuracy. With an IP67 protection rating, they are built to withstand harsh environments, available in both metallic and plastic housings. Each model includes sensitivity adjustment via a trimmer, ensuring adaptability to various applications. The sensors provide total protection against electrical damages and are CE and cULus approved. Key specifications include a nominal sensing distance of 150mm, a thermal drift of Sr at ?10% Sr, and a repeat accuracy of 10%. The sensors operate on a blackground suppression principle with a minimum sensing distance (blind zone) of 30mm. They feature an NPN NO+NC output type and a switching frequency of 1.5kHz, with a rapid response time of 333µs. The operating voltage ranges from 10 to 30VDC, with a no-load supply current of ?30mA and a load current of ?100mA. The sensors are equipped with short-circuit and reverse polarity protection, ensuring reliable performance. Constructed with a nickel-plated brass housing and a PMMA/ABS active head, the sensors are designed for durability. They are compatible with M12 plug connections and come with supplied accessories, including M18 x 1 nuts and a screwdriver. The sensors are EMC compatible with EN 60947-5-2 standards and can withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27. Operating efficiently in temperatures ranging from -15°C to +55°C, these sensors are ideal for a wide range of industrial applications.
