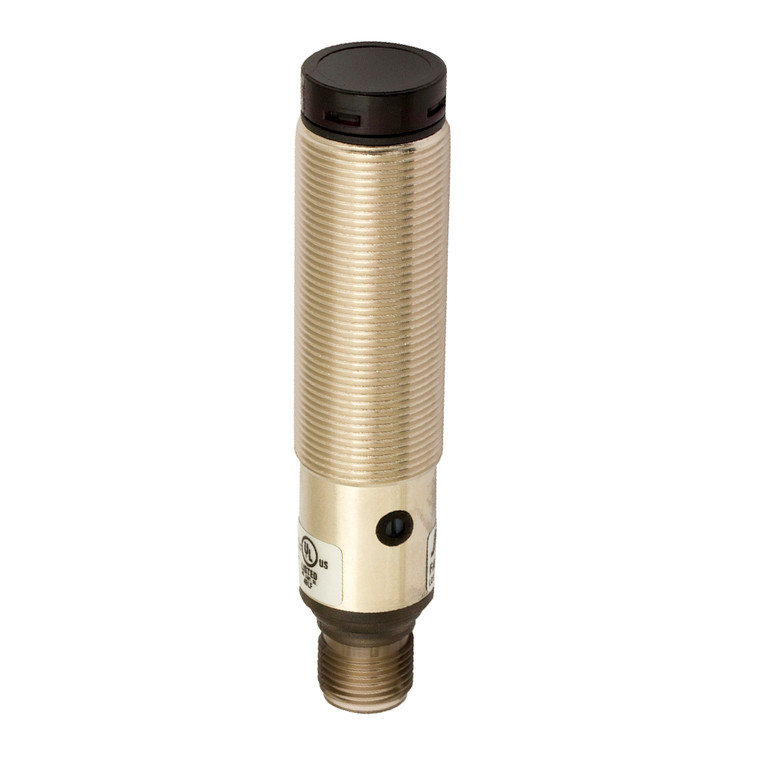

The Datasensing FARN/BN-1E Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring an axial polarized optic with a nominal sensing distance of 4 meters, these sensors are ideal for detecting transparent objects with a retro-reflective model and red LED emission. The robust design includes a nickel-plated brass housing with IP67 protection, ensuring durability in harsh environments. With a power supply range of 10 to 30 VDC, these sensors offer total protection against electric damages, including short-circuit and reverse polarity protection. The NPN NO+NC output type provides versatile connectivity options, while the sensitivity adjustment trimmer allows for fine-tuning to suit specific applications. The sensors boast a high switching frequency of 250Hz and a rapid response time of 2ms, making them suitable for fast-paced industrial settings. Additional features include LED indicators for output status, a compact M18 x 1 design, and compatibility with CE and cULus standards. Supplied with M18 x 1 nuts and a screwdriver, these sensors are ready for immediate installation and operation in temperatures ranging from -25°C to +70°C.
- Nominal sensing distance:
- 4m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
