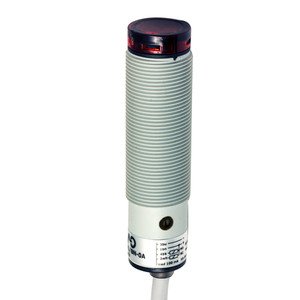

Datasensing FARN/BN-3A Sensors
Datasensing
$111.43
The Datasensing FARN/BN-3A Sensors are advanced photoelectric sensors designed for precise and reliable object detection. Featuring a 90° polarized optic with a 2-meter adjustable range, these sensors are equipped with an NPN NO+NC output and a robust metal housing. The sensors operate on a 10...30 VDC power supply and are built to withstand harsh environments with an IP67 protection rating. They are suitable for detecting transparent objects with a red LED emission and offer total protection against electrical damages, including short-circuit and reverse polarity protection. The sensors are CE and cULus approved, ensuring compliance with international standards.
With a nominal sensing distance of 2.5 meters and a repeat accuracy of 5%, these sensors provide reliable performance in various applications. The sensitivity can be easily adjusted using a trimmer, and the sensors feature a radial optic position at 90°. They have a high switching frequency of 250Hz and a fast response time of 2ms, making them ideal for dynamic environments. The sensors are equipped with LED indicators for easy status monitoring and are designed to resist interference from external light sources.
Constructed with a nickel-plated brass housing and a PMMA active head, the sensors are durable and lightweight, weighing only 130g. They come with a 2-meter PVC cable for easy installation and are supplied with M18 nuts and a screwdriver for convenience. The sensors are designed to operate in temperatures ranging from -25°C to +70°C, ensuring reliable performance in a wide range of conditions.
- Nominal sensing distance:
- 2,5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Radial 90°
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
