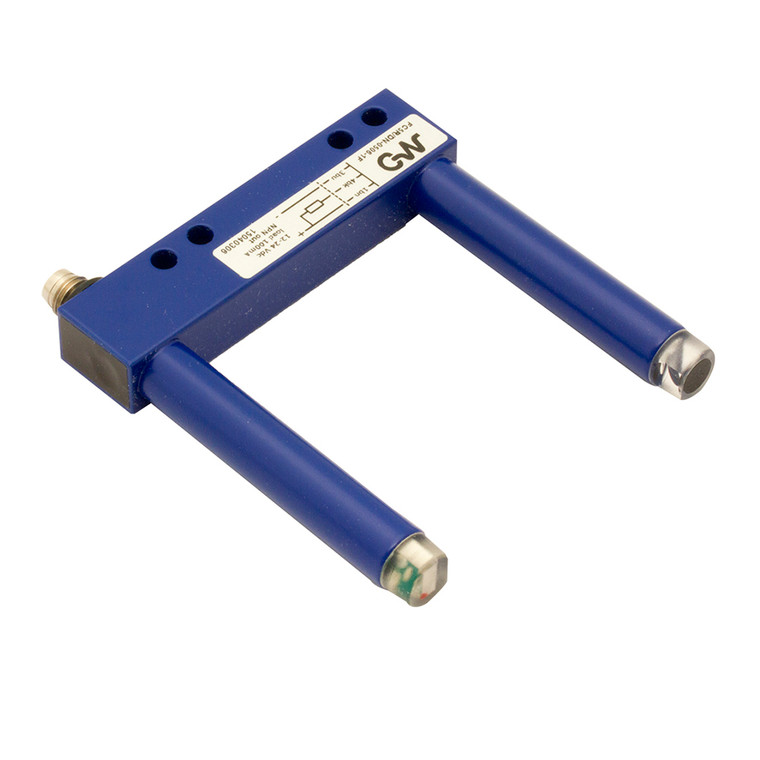

Datasensing FC5R/DN-0506-1F Sensors
Datasensing
$178.59
The Datasensing FC5R/DN-0506-1F Sensors are designed for precision and reliability, featuring a 50mm width slot and a 60mm depth, perfect for detecting objects as small as 0.8mm. Equipped with a high-power RED LED emission, these sensors ensure high visibility and efficient performance. The robust metal housing and compact design make it ideal for various industrial applications. With a plug-and-play setup, no sensitivity adjustment is needed, simplifying installation and use. The sensor operates on a 12-24V DC power supply and supports NPN-NO output, with a switching frequency of 4 KHz and a response time of 125µs. It includes a 3-pin M8 connector for easy integration and features short-circuit and reverse polarity protection for enhanced safety. The sensor is built to withstand harsh environments, with an IP67 protection rating and an operating temperature range of -10°C to +60°C. The yellow LED indicator provides clear status output, ensuring seamless monitoring and operation. CE and UL approved, this sensor is a reliable choice for your photoelectric slot sensing needs.
- Nominal sensing distance:
- 50mm
- minimum detectable object:
- 0,8mm
- Si:
- Yes
- Sensitivity adjustment:
- No
- Function Principle:
- Photoelectric slot
- Output type:
- NPN Don
- Output Function:
- Don
- Switching frequency:
- 4kHz
- Response time:
- 125µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?100mA
- Output voltage drop:
- ?1,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 72g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 3pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 10°C + 60°C
- Storage temperature:
- - 40°C + 80°C
- Width slot detection:
- 50mm
- Depth slot detection:
- 60mm
- Approvals:
- CE UL
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
