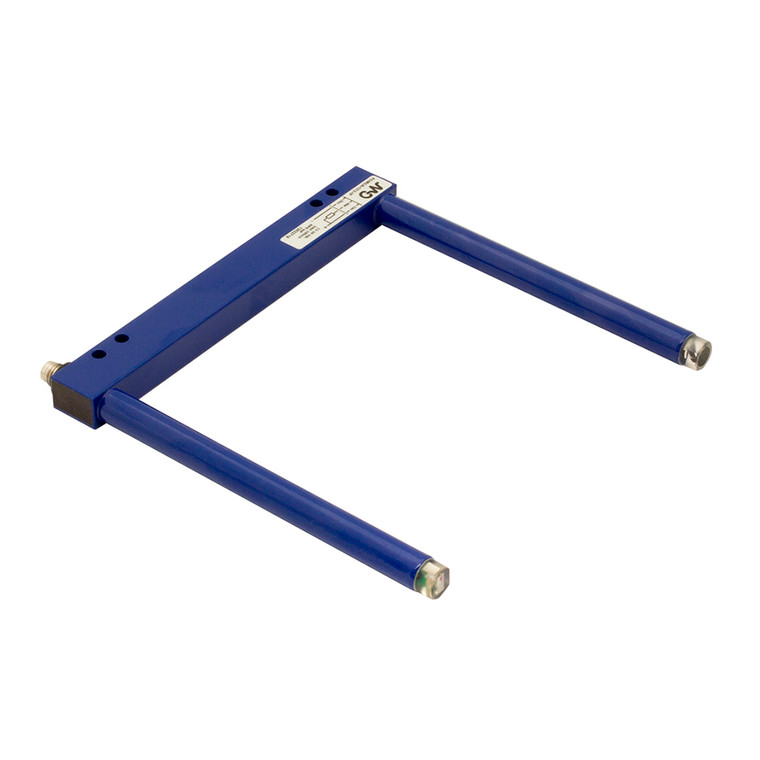

Datasensing FC5R/LP-1812-1F Sensors
Datasensing
$219.10
The Datasensing FC5R/LP-1812-1F Sensors are designed for precision and reliability in industrial applications. Featuring a slot width of 180mm and a depth of 124mm, these sensors utilize a high-power RED LED for optimal performance. With a PNP NC output and an M8 connector, they offer plug-and-play functionality without the need for adjustments. The sensors are capable of detecting objects as small as 0.8mm, making them ideal for high-precision tasks. Housed in durable painted aluminum, they are built to withstand harsh environments with an IP67 protection rating. The sensors operate efficiently within a temperature range of -10°C to +60°C and are equipped with a high visibility LED indicator for status output. With a switching frequency of 4 KHz and a response time of 125µs, they ensure fast and accurate detection. Additional features include short-circuit and reverse polarity protection, making them a reliable choice for various industrial settings.
- Nominal sensing distance:
- 180mm
- minimum detectable object:
- 1,2mm
- Si:
- Yes
- Sensitivity adjustment:
- No
- Function Principle:
- Photoelectric slot
- Output type:
- PNP Lon
- Output Function:
- Lon
- Switching frequency:
- 4kHz
- Response time:
- 125µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?100mA
- Output voltage drop:
- ?1,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 142g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 3pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 10°C + 60°C
- Storage temperature:
- - 40°C + 80°C
- Width slot detection:
- 180mm
- Depth slot detection:
- 120mm
- Approvals:
- CE UL
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
