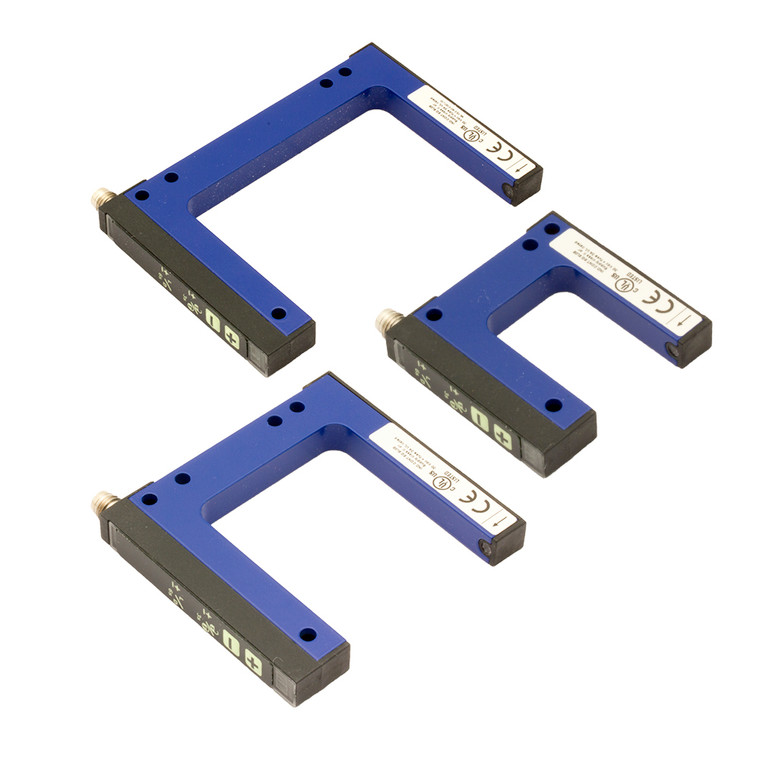

Datasensing FC6I/0B-M510-1F Sensors
Datasensing
$287.57
The Datasensing FC6I/0B-M510-1F Sensors are designed for precision and reliability, featuring a 5mm width and 95mm depth slot detection. These sensors utilize advanced infrared and LASER emission technology, classified as class 1, ensuring safe and efficient operation. The robust metal housing provides durability, while the light/dark switching capability is easily selectable via a button. With a minimum detectable object size of 0.2mm, these sensors are ideal for high-precision applications. They operate within a temperature range of -20 to +60 °C and are equipped with M8 connectors (4 pins) for PNP/NPN, LO/DO configurations. The sensors boast a high switching frequency of 10 kHz and a rapid response time of 50 µs, making them suitable for fast-paced environments. Additional features include teach-in sensitivity adjustment, short-circuit and reverse polarity protection, and LED indicators for status output and adjustment. The painted aluminum housing and polyamide/glass active head material ensure long-lasting performance, while the IP65 degree of protection guarantees resistance to dust and water ingress. With CE and UL approvals, these sensors meet stringent safety and quality standards, making them a reliable choice for various industrial applications.
- Nominal sensing distance:
- 5mm
- minimum detectable object:
- 0.2mm
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Photoelectric slot
- Output type:
- NPN / PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 10kHz
- Response time:
- 50 µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output), Red (adjustment or block keypad)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 90g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 4pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 20°C + 60°C
- Storage temperature:
- - 30°C + 80°C
- Width slot detection:
- 5mm
- Depth slot detection:
- 95mm
- Approvals:
- CE UL
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP65
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP65
