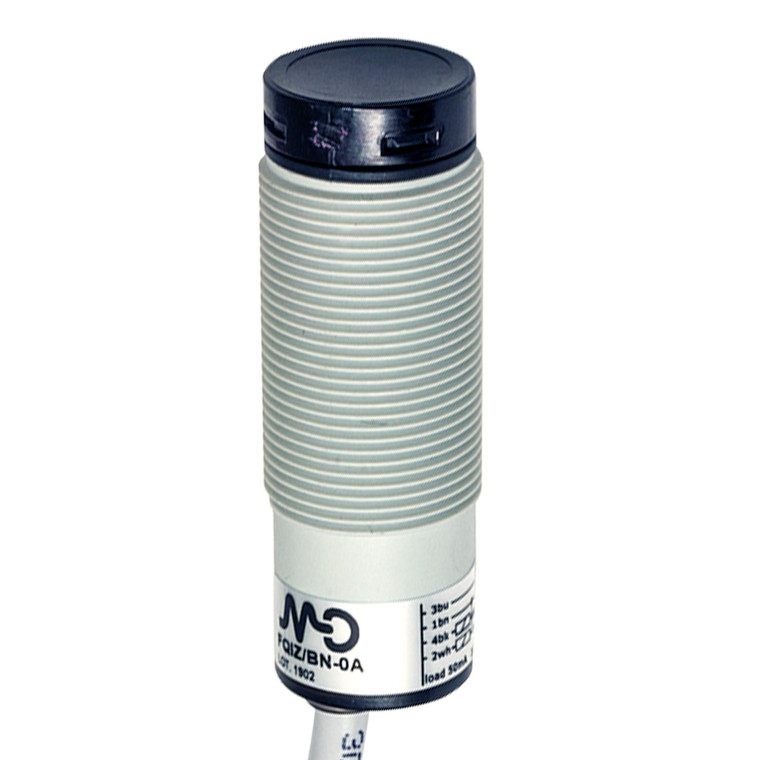

Datasensing FQIZ/BP-0A Sensors
Datasensing
$73.54
The Datasensing FQIZ/BP-0A Sensors are high-performance photoelectric sensors designed for precise and reliable detection. Featuring an axial receiver with a nominal sensing distance of 20 meters, these sensors are equipped with a PNP NO+NC output, providing both normally open and normally closed complementary outputs. The robust design includes a plastic housing with a 2-meter PVC cable, ensuring durability and flexibility in various industrial environments.
These sensors offer a wide range of models, including direct diffuse, retro-reflective, polarized, and fixed-focus options, catering to diverse application needs. The direct diffuse models are available with both short and long sensing distances, while the polarized and through-beam models enhance detection accuracy. With a protection degree of IP67, the sensors are fully protected against dust and water ingress, making them suitable for harsh conditions.
The FQIZ/BP-0A Sensors are engineered for efficiency, featuring a high switching frequency of 250Hz and a rapid response time of 2ms. They operate within a voltage range of 10 to 30VDC, with a low no-load supply current of ? 25mA and a load current of ?50mA. The sensors are equipped with short-circuit and overvoltage protection, as well as reverse polarity protection, ensuring reliable performance and longevity.
Designed to withstand extreme temperatures, these sensors operate effectively between -25°C and +70°C without freezing. The M18 x 1 dimensions and lightweight design (50g) make installation straightforward, with supplied M18 x 1 nuts for secure mounting. The sensors are CE approved and comply with EMC compatibility standards EN 60947-5-2, ensuring they meet rigorous safety and performance criteria.
Ideal for applications requiring precise detection and robust performance, the Datasensing FQIZ/BP-0A Sensors are a versatile and reliable choice for industrial automation and control systems.
- Nominal sensing distance:
- 20m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?50mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=50mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 50g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
