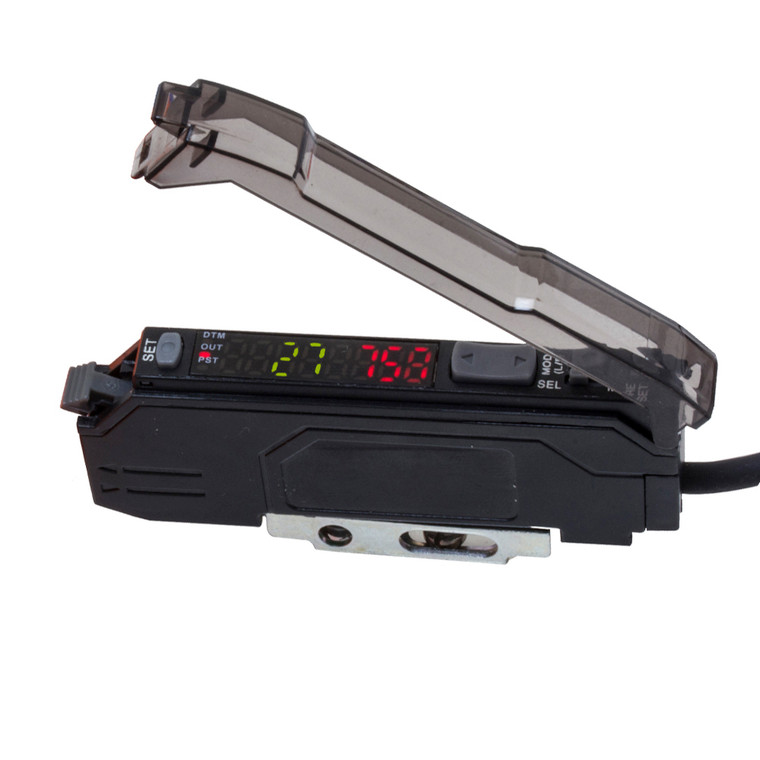

Datasensing FY2/0P-0V Sensors
Datasensing
$181.82
Fibre amplifier Optical DIN rail PNP teach double display L/D responce time selectable, cable 100mm with plug M8 (4 pin)
- Nominal sensing distance:
- Depending on optical fibres used
- Repeat Accuracy:
- ? 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Optic fiber amplifier
- Notes:
- Delay ON/OFF One Shot
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 12,5 Khz(HIGH SPEED) 2 Khz (FINE) 500 Hz (SUPER) 31,25 Hz(MEGA)
- Response time:
- 40µs(HIGH SPEED) 250 µs (FINE) 1ms (SUPER) 16ms(MEGA)
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 50mA
- Load current:
- ?100mA
- Leakage current:
- ? 10µA
- Output voltage drop:
- ?1,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (output state) Red (Signal level -4 digits) Green (Threshold - 4 digits)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (680nm)
- Interference to external light:
- 20.000lux (incandescent lamp), 30.000lux (sunlight)
- Weight:
- 50 g (approx.)
- Housing Material:
- PC
- Connections:
- 150mm PVC cable + M8 plug 4pin
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP64
- Supplied Accessories:
- DIN mounting bracket
- Mechanical Protection:
- IP64
