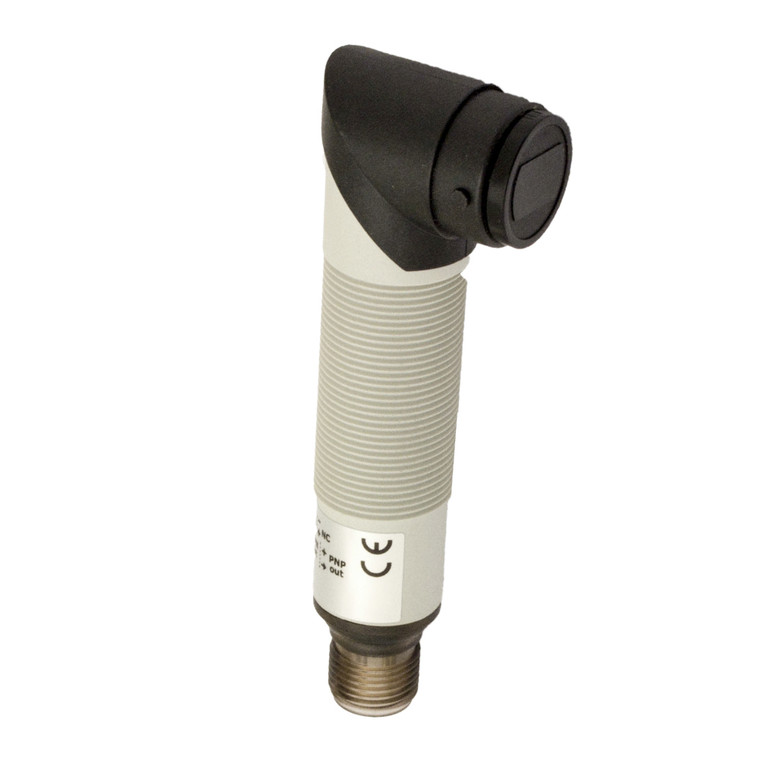

The Datasensing MP0/00-0E Sensors are designed for precision and reliability in various industrial applications. These photoelectric sensors feature a nominal sensing distance of 50mm and are equipped with background suppression technology, ensuring accurate detection even in challenging environments. The sensors offer a wide range of models, including diffuse, retro-reflective, polarized, and through-beam detection, each tailored to specific needs.
Through-beam models boast a high sensing range, while retro-reflective models utilize red visible polarized light for enhanced performance. The right angle optic design (MP) and fixed distance background suppression models provide versatility and precision. All through-beam models include a check function for added reliability.
Built to withstand harsh conditions, these sensors offer complete protection against electrical damage, including short-circuit and overvoltage protection. They operate within a voltage range of 10 to 30VDC, with a no-load supply current of ? 40mA and a load current of ?100mA. The sensors feature a fast response time of 500µs and a switching frequency of 1kHz, making them ideal for high-speed applications.
Constructed with durable materials, the sensors have a housing made of PBT/PC plug and an active head of PMMA, ensuring longevity and resistance to environmental factors. They are designed to operate in temperatures ranging from -25°C to +70°C without freezing and are protected against shocks and vibrations according to IEC standards. With an IP67 degree of protection, these sensors are suitable for use in demanding industrial settings.
The sensors come with an M12 plug connection and are supplied with M18 x 1 nuts for easy installation. LED indicators provide clear status output, and the sensors are compatible with both NPN and PNP output types, offering NO/NC selectable functions for flexible integration into existing systems. With approvals from CE and cURus, and EMC compatibility with EN 60947-5-2, the Datasensing MP0/00-0E Sensors are a reliable choice for precise and efficient sensing solutions.
- Nominal sensing distance:
- 50mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°
- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
