Datasensing MP0/00-1A Sensors
Datasensing
$167.71
The Datasensing MP0/00-1A Sensors are advanced photoelectric sensors designed for precision and reliability in various industrial applications. Featuring a nominal sensing distance of 50mm, these sensors offer a wide range of models including diffuse, retro-reflective, polarized, through-beam detection, and background suppression. The through-beam models boast a high sensing range, while the retro-reflective models utilize red visible polarized light for enhanced detection capabilities.
With a radial 90° optic position and a robust nickel-plated brass housing, these sensors are built to withstand harsh environments, offering complete protection against electrical damage and short-circuit protection with an auto-reset feature. The sensors operate within a voltage range of 10 to 30VDC, with a no-load supply current of ? 40mA and a load current of ?100mA. They are equipped with LED indicators for status output and provide a fast response time of 500µs, ensuring quick and accurate detection.
The MP0/00-1A Sensors are designed with a focus on durability and performance, featuring an IP67 degree of protection, making them resistant to dust and water ingress. They are also compliant with EMC compatibility standards EN 60947-5-2 and are approved by CE and cURus. With a compact design of M18 x 1 dimensions and a weight of 130g, these sensors are easy to install and integrate into existing systems.
Ideal for applications requiring precise background suppression, these sensors are perfect for detecting white targets with a Kodak 90% 100 x 100mm specification. The sensors are capable of operating in temperatures ranging from -25°C to +70°C, making them suitable for a wide range of industrial environments. Supplied with M18 x 1 nuts for secure installation, the Datasensing MP0/00-1A Sensors are a reliable choice for your sensing needs.
- Nominal sensing distance:
- 50mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°

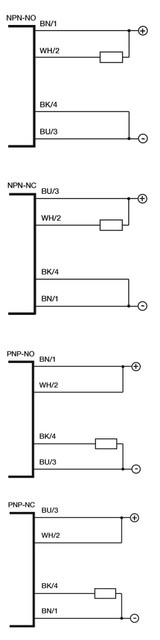

- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 40mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
