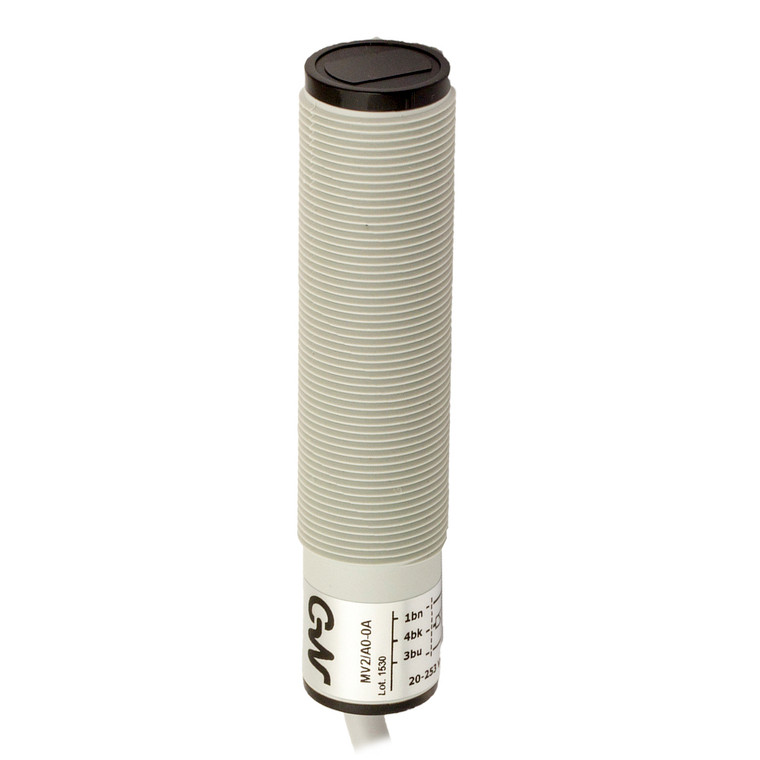

Datasensing MV2/A0-0A Sensors

The Datasensing MV2/A0-0A Sensors offer a versatile solution for various sensing applications with their wide range of models, including diffuse, retro-reflective, polarized, and through-beam options. These sensors are designed for high performance, featuring through-beam models with an impressive sensing range and retro-reflective models equipped with polarized light and a visible beam. The M12 plug cable exit is available in both axial and right-angle shapes, providing flexibility in installation. Engineered for reliability, these sensors boast low leakage current and high output current, ensuring efficient operation. With an IP67 protection degree, they are fully protected against electrical damage and are suitable for use in harsh environments. The nominal sensing distance is 100mm, with a thermal drift of Sr at ?10%Sr and a repeat accuracy of 5%. The function principle is based on diffuse reflection, ideal for short distances up to 200mm, with a white target Kodak 90% 100 x 100mm. The sensors feature an axial optic position and a TRIAC NO output type, with a switching frequency of 25Hz and a response time of 20ms. They operate on a voltage range of 20...253VAC/50-60Hz, with a no-load supply current of ? 30mARMS and a load current range of 5…300mARMS. The leakage current is 6A, and the output voltage drop is ?3V@Iload=300mARMS, with a maximum ripple content of ?10%. Equipped with red LED indicators for status output, the sensors have a time delay before availability of ?200ms and emit LED infrared light at 880nm. They are resistant to interference from external light, withstanding up to 3,000 lux from incandescent lamps and 10,000 lux from sunlight. The sensors are compact, with dimensions of M18x1/L=78.9mm and a weight of 100g. Constructed with a PBT/PC cable exit and PMMA active head material, they are durable and reliable. The sensors are approved with CE cURus certifications and comply with EMC compatibility standards EN 60947-5-2. They are designed to withstand shocks and vibrations as per Vibration IEC 60068-2-6 and Shock IEC 60068-2-27 standards. With a mechanical protection rating of IP67, they are suitable for operating temperatures ranging from -25°C to +70°C (without freeze). Supplied with M18 x 1 nuts, these sensors are ready for immediate integration into your system.
