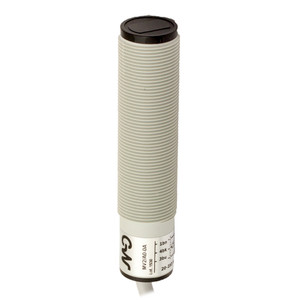

Datasensing MV6/A0-0A Sensors
Datasensing
$113.73
The Datasensing MV6/A0-0A Sensors are advanced photoelectric sensors designed for reliable performance in various applications. Featuring a diffuse reflection function with a nominal sensing distance of 400mm, these sensors are ideal for medium-distance detection tasks. The robust design includes a plastic housing with a 2m axial cable, ensuring durability and flexibility in installation. With a high degree of protection (IP67), these sensors are safeguarded against electrical damage and environmental factors.
The MV6/A0-0A model offers a wide range of configurations, including through-beam models with high sensing ranges and retro-reflective models with polarized light for enhanced visibility. The M12 plug cable exit is available in both axial and right-angle shapes, providing versatility in mounting options. The sensor's low leakage current and high output current ensure efficient operation, while the TRIAC NO output type supports a load current range of 5 to 300mARMS.
Engineered for precision, the sensor boasts a repeat accuracy of 5% and a response time of 20ms, making it suitable for fast-paced environments. The LED infrared emission at 880nm and red status output indicator provide clear operational feedback. Designed to withstand harsh conditions, the sensor operates effectively within a temperature range of -25°C to +70°C and is resistant to shocks and vibrations as per IEC standards.
The MV6/A0-0A Sensors are CE and cURus approved, ensuring compliance with international safety and performance standards. Supplied with M18 x 1 nuts for secure installation, these sensors are a reliable choice for industrial automation and control systems.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10%Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- TRIAC NO
- Output Function:
- NO
- Switching frequency:
- 25Hz
- Response time:
- 20ms
- Operating Voltage:
- 20...253VAC/50-60Hz
- No-Load supply current:
- ? 30mARMS
- Load current:
- 5 300mARMS
- Leakage current:
- 6A
- Output voltage drop:
- ?3V@Iload=300mARMS
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 100g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
