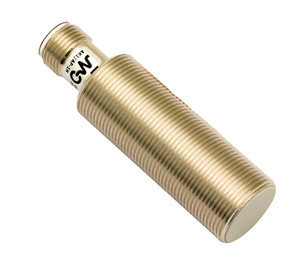

The Datasensing PFM1/BP-3HAN Sensors are high-performance inductive sensors designed for precise proximity detection. Featuring an M12 shielded design, these sensors offer both Normally Open (NO) and Normally Closed (NC) PNP output functions, making them versatile for various applications. With a nominal sensing distance of 4mm and an operating range of 0 to 3.24mm, they are ideal for detecting standard targets of 12x12mm FE360. The sensors are equipped with advanced protection features, including short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable operation in demanding environments.
Constructed with AISI316L stainless steel housing and a PPS active head, these sensors are robust and durable, withstanding temperatures from -40°C to +80°C, and up to 100°C for short cleaning processes. The M12 plug connection and supplied M12x1 nuts facilitate easy installation, while the yellow LED indicator provides clear output state visibility. Certified with CE, cULus, ECOLAB, and DIVERSEY approvals, and compliant with ATEX II 3G Ex nA IIC T5 Gc standards, these sensors are suitable for use in hazardous areas. With a switching frequency of 2kHz and a mechanical protection rating of IP67, the Datasensing PFM1/BP-3HAN Sensors deliver reliable performance in industrial settings.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,24mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,30 / aluminium: 0,35 / brass: 0,40 / stainless steel: 0,75
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO + NC
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 15mA
- Load current:
- ? 200mA
- Leakage current:
- ? 15?A
- Output voltage drop:
- ? 2V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- AISI316L Stainless Steel
- Connections:
- M12 Plug
- Active Head Material:
- PPS
- Tightening torque:
- 25Nm
- Material:
- AISI316L Stainless Steel
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus ECOLAB DIVERSEY II 3G Ex nA IIC T5 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- 2 nuts M12x1
- Dimensions:
- M12 x 1 / L = 64,6mm
- Operating Temperature:
- -40°C +80°C (up to 100°C for short exposure during cleaning process)
- Mechanical Protection:
- IP67
