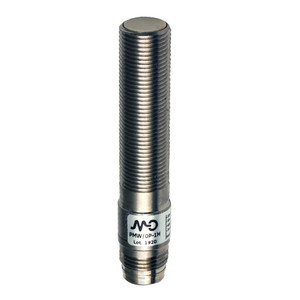

The Datasensing PMW/0N-2H Sensors are designed for precision and durability, featuring an M12 unshielded NPN connection with a robust stainless steel housing. These inductive sensors are engineered to withstand harsh environments, offering cutting oil resistance and immersion proof sealing with IP67/68 protection. With a high frequency switching capability and complementary output (NO+NC), these sensors are ideal for machine tool applications. The innovative double enclosure housing ensures complete protection against electrical damages, while the wide-angle visible LED indicator provides clear status visibility.
The sensors boast a nominal sensing distance of 4mm and an operating distance of 0 to 3.24mm, with a standard target size of 12x12mm FE360. They offer a correction factor for various materials, including copper, aluminum, brass, and stainless steel, ensuring accurate performance across different applications. The sensors maintain a thermal drift of Sr under 10% and a repeat accuracy of less than 5% at 24V and 23°C ±5°C.
With a switching frequency of 2kHz and an operating voltage range of 10 to 30Vdc, these sensors are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection. The M12 plug connection and AISI303 stainless steel housing provide a secure and reliable installation, while the PPS active head material ensures long-lasting performance. The sensors are CE approved and EMC compatible, meeting IEC 60947-5-2 standards for shocks and vibrations. Supplied with two M12x1 nuts, these sensors are ready for immediate integration into your system.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,24mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,34 / aluminium: 0,41 / brass: 0,51 / stainless steel: 0,88
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO + NC
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 15mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 2V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 30g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- M12 Plug
- Active Head Material:
- PPS
- Tightening torque:
- 20Nm
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- M12
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67, IP68
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
