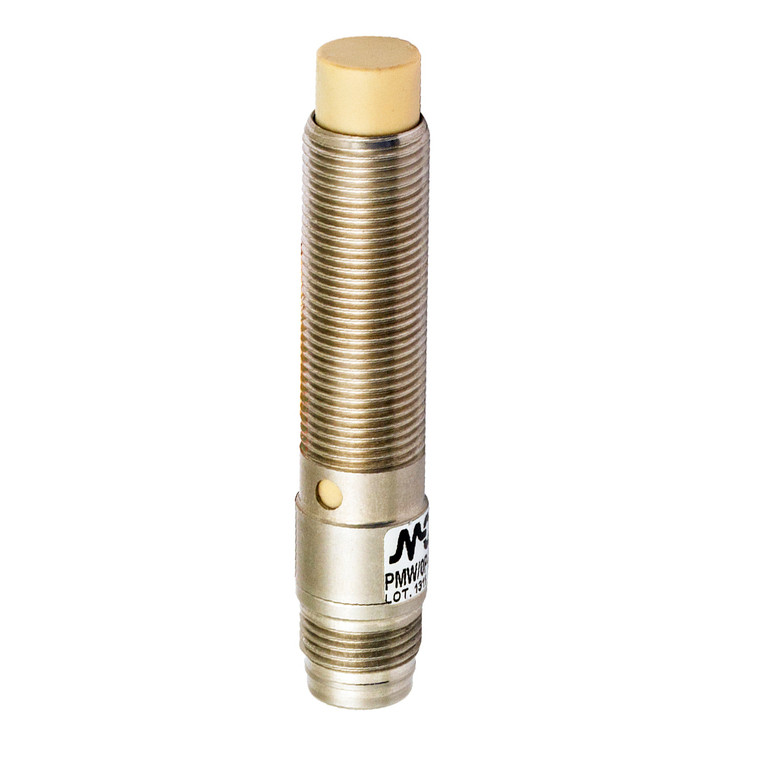

Datasensing PMW/0P-2H Sensors
Datasensing
$71.22
The Datasensing PMW/0P-2H Sensors are high-performance inductive sensors designed for precision and reliability in demanding environments. Featuring an M12 unshielded PNP connection and constructed from durable stainless steel, these sensors are engineered to withstand harsh conditions, including exposure to cutting oils and immersion, thanks to their IP67/68 sealing. With a nominal sensing distance of 4mm and an operating range of 0 to 3.24mm, they offer high-frequency switching and a complementary output (NO+NC) for versatile applications. The innovative double enclosure housing ensures complete protection against electrical damages, while the LED indicator provides a wide-angle visibility for easy monitoring.
These sensors are equipped with advanced features such as short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable performance. They operate within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 15mA and a load current of ? 100mA. The sensors are designed for easy installation with an M12 plug cable exit and come with two M12x1 nuts for secure mounting. With a robust AISI303 stainless steel housing and PPS active head material, they are built to endure temperatures from -25°C to +70°C. The sensors are CE approved and comply with EMC compatibility standards IEC 60947-5-2, making them an ideal choice for industrial applications requiring high precision and durability.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,24mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,34 / aluminium: 0,41 / brass: 0,51 / stainless steel: 0,88
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard no-flush mount
- Functions:
- Proximity
- Output type:
- PNP
- Output Function:
- NO + NC
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 15mA
- Load current:
- ? 100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 2V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Mounting:
- Unshielded
- Weight:
- 30g
- Housing Material:
- AISI303 Stainless Steel
- Connections:
- M12 Plug
- Active Head Material:
- PPS
- Tightening torque:
- 20Nm
- Material:
- AISI303 Stainless Steel
- Diameter/Dimension:
- M12
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67, IP68
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
