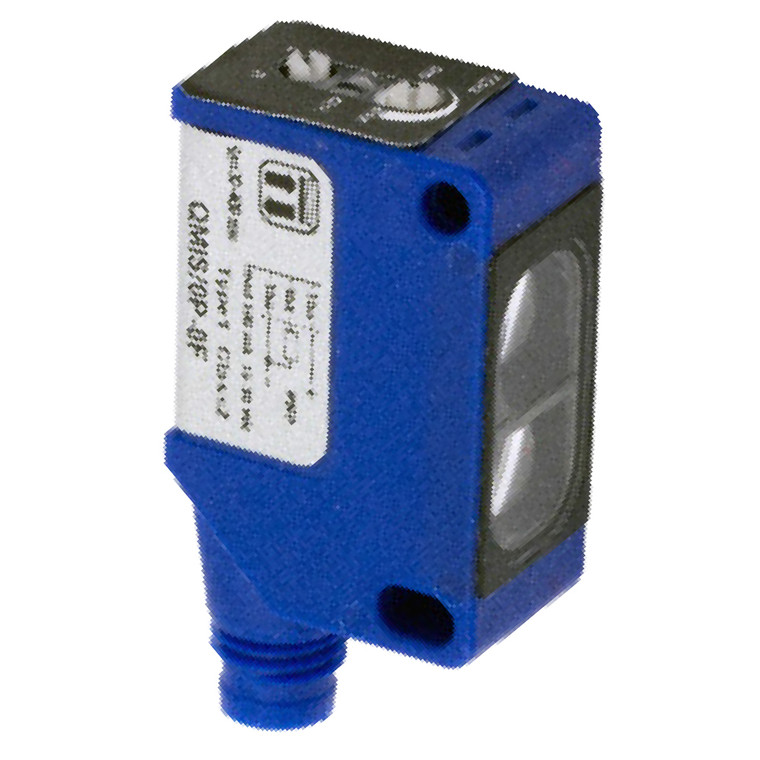

Datasensing QMRHD/0N-0FPT Sensors

The Datasensing QMRHD/0N-0FPT Sensors are advanced photoelectric sensors designed in a compact, miniature cubic form. These sensors feature a nominal sensing distance of 20 meters and are equipped with a trimmer for sensitivity adjustment, ensuring precise detection. The emitter and receiver function principle, along with a radial 90° optic position, enhances their versatility in various applications. With an NPN L/D selectable output type and a switching frequency of 2kHz, these sensors offer reliable performance with a response time of just 250µs. Operating within a voltage range of 10 to 30VDC, the sensors maintain a low no-load supply current of ?45mA and a load current of ?100mA, with minimal leakage current of ?10?A. The output voltage drop is kept to ?2V at a load current of 100mA, ensuring efficient operation. The sensors are equipped with LED indicators for status output (yellow) and stability (green), providing clear visual feedback. Built with robust PA66 housing and PMMA active head material, the sensors are designed to withstand harsh environments, offering mechanical protection rated at IP67. They are resistant to shocks and vibrations as per IEC standards and are approved by CE and cULus. The sensors also feature short-circuit and reverse polarity protection, as well as impulsive overvoltage protection, ensuring durability and reliability. With a compact dimension of 40.6x21x13mm, these sensors are easy to integrate into various systems. They operate effectively in temperatures ranging from -25°C to +70°C and can be stored in temperatures as low as -30°C and as high as +80°C. The M8 plug 4-pin connection ensures secure and straightforward installation, making the Datasensing QMRHD/0N-0FPT Sensors an ideal choice for precise and reliable photoelectric sensing needs.
